TC74HC4053AFN

CMOS analog multiplexer, SOP, -0.5 to 7 V, low ON resistance, ±20 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: TC74HC4053AFN

Brand:: Toshiba Semiconductor - Toshiba | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-22

From Other Seller

Part Number:TC74HC4053AFN
US $0.10 - 1.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

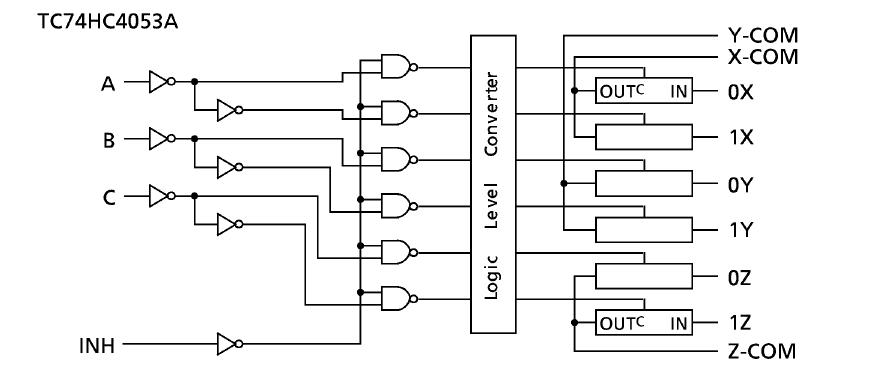

The TC74HC4053AFN is a high speed CMOS analog multiplexer/demultiplexer fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The TC74HC4053AFN has a 2 channel 3 configuration. The digital signal to the control terminal turns "ON" the corresponding switch of each channel a large amplitude signal (VCC-VEE) can then be switched by the small logical amplitude (VCC-GND) control signal.

Parametrics

TC74HC4053AFN absolute maximum ratings: (1)supply voltage range: -0.5 to 7 V; (2)control input voltage: -0.5 to VCC+0.5 V; (3)switch I/O voltage: VEE-0.5 to VCC+0.5 V; (4)control input diode current: ±20 mA; (5)I/O diode current: ±20 mA; (6)switch through current: ±25 mA; (7)DC VCC or ground current: ±20 mA; (8)power dissipation: 500 (DIP)/180(SOP, TSSOP) mW; (9)storage temperature: -65 to 150 ℃.

Features

TC74HC4053AFN features: (1)high speed: tpd=15ns(typ) at VCC=5V; (2)low power dissipation: ICC=4A (max) at Ta=25℃; (3)high noise immunity: VNIH=VNIL=28% VCC (min); (4)low ON resistance: RON=50Ω (typ) at VCC-VEE=9V; (5)high noise immunity: THD=0.02% (typ) at VCC-VEE=9V; (6)pin and function compatible with 4051/4052/4053B.
