Product Summary
The TB62237BFG is a dual stepping motor driver driven by PWM chopper micro step, with 3-channel step-down DC-DC converters and an external-IC reset function. To drive two stepping motors of two-phase bipolar type, a 16-bit latch and a 16-bit shift register are built into the IC. The TB62237BFG is suitable for driving stepping motors with low-torque ripple in a highly efficient manner. In addition, a signal axis can be switched to serve as a PWM driver for two DC motors.
Parametrics
TB62237BFG absolute maximum ratings: (1)Motor DC-DC output voltage VM VDIN: 40 V; (2)Motor output current IOSAP: 8 A; (3)DC-DC converter output current IDC BC: 2.6 A; (4)Current detection pin voltage VRS: VM±4.5 V; (5)Reset pin supply voltage VRST: 5 V; (6)Reset output current IRST: -60 mA; (7)Logic input voltage VIN :-0.4 to 6.0 V; (8)Power dissipation PD: 4.2 W; (9)Operating temperature Topr: -40~85 ℃; (10)Storage temperature Tstg: -55~150 ℃; (11)Junction temperature Tj: 150 ℃.
Features
TB62237BFG features: (1)It is possible to supply external voltage by incorporating three step-down DC-DC converters; (2)A Reset function has been added making it possible to deliver an external reset signal; (3)The DMOS motor driver output of this monolithic BiCD IC is capable of achieving a low ON resistance of Ron =0.6 Ω(Tj = 25℃, 0.42A: typ.); (4)With two sets of internal 16-bit shift register and latch, the IC can drive stepping motors using a 4-bit micro step; (5)Equipped protection circuits: DC-DC converter over current/increased voltage protection, motor over current protection and total IC over temperature protection In addition, equipped with Power On Reset circuit for initializing the IC when the power is turned on and off.; (6)Package: 64-pin QFP package with a heat sink (HQFP64-P-1010-0.50); (7)Maximum rating of motor output voltage: 40 V.

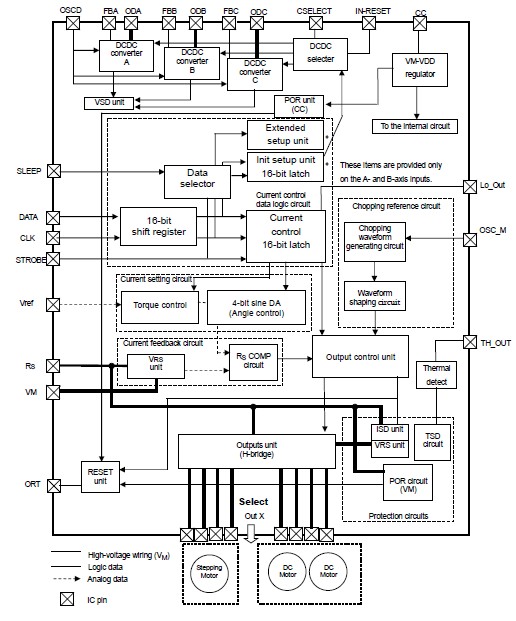

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TB62237BFG(M) |
Toshiba |
Motor / Motion / Ignition Controllers & Drivers Combination Motor Driver |
Data Sheet |
Negotiable |
|
||||
