Product Summary

The S-81211SG is a three-terminal positive voltage regulator made using the CMOS process. Since the device has higher precision output voltage and consumes less current than existing three-terminal voltage regulators, battery-powered portable equipment can have a higher performance and a longer service life.

Parametrics

S-81211SG absolute maximum ratings: (1)input voltage, VIN: 12V; (2)output voltage, VOUT: VIN+0.3 to VSS-0.3V; (3)output current, IOUT: 100mA; (4)power dissipation, PD: 400mW; (5)operating temperature, Topr: -40 to 85℃; (6)storage temperature, Tstg: -40 to 125℃.

Features

S-81211SG features: (1)low power consumption; (2)high accuracy of output voltage; (3)small input/output voltage differnece; (4)low temperature coefficient of output voltage; (5)wide operating voltage range; (6)good line regulation; (7)TO-92, SOT-89-3 and SOT-23-5 package.

Diagrams

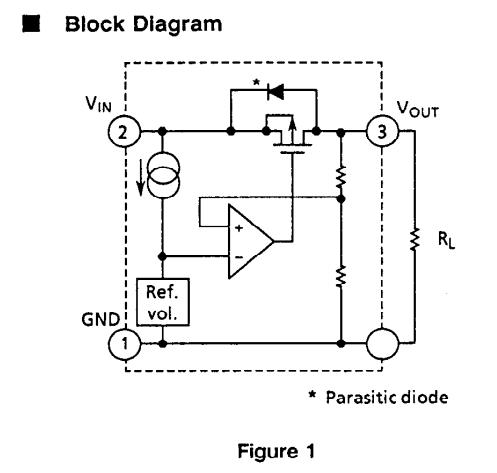

S-81211SG block diagram
