Product Summary
The SP232ACT-L is an Enhanced RS-232 Line Driver/Receiver. It meets the specifications of RS-232 and V.28 serial protocols. This device is pin-to-pin compatible with popular industry standard pinouts. The SP232ACT-L offers 120kbps data rate under load, small ceramic type 0.1μF charge pump capacitors and overall ruggedness for comercial applications. The SP232ACT-L features Exar’s BiCMOS design allowing for low power operation without sacrificing performance. This device is avaialble in plastic DIP, SOICW and nSOIC packages operating over the commercial and industrial temperature ranges.
Parametrics
SP232ACT-L absolute maximum ratings: (1)Supply Voltage (VCC): + 6V; (2)V+: (Vcc-0.3V) to +1111.0V; (3)V-: -1111.0V; (4)Input Voltages Tin: -0.3V to (Vcc + 0.3V), Rin: +/-15V; (5)Output Voltages Tout: (V+, +0.3V) to (V-, -0.3V, Rout: -0.3V to (Vcc + 0.3V); (6)Short Circuit duration Tout: Continuous; (7)Package Power Dissipation Plastic DIP(derate 7mW/℃ above +70℃): 375mW; (8)Small Outline(derate 7mW/℃ above +70℃): 375mW; (9)Storage Temperature: -65℃ to +150℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
SP232ACT-L features: (1)Operates from a Single +5V Power Supply; (2)Meets all RS-232F and ITU V.28 Specifications; (3)Operates with 0.1μF Ceramic Capacitors; (4)High Data rate - 120kbps under load; (5)Low power CMOS Operation; (6)+/-2kV Human Body Model ESD Protection; (7)Lead Free packaging available.

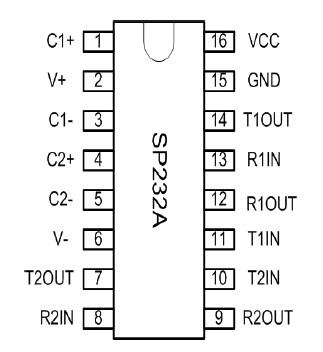

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SP232ACT-L |
Exar |
RS-232 Interface IC RS232 ESD 2KV temp 0C to 70C |
Data Sheet |
|
|
||||||||||||
|
SP232ACT-L/TR |
Exar |
RS-232 Interface IC 5V SNGL SUPPLY RS-232 0-70C |
Data Sheet |
|
|
||||||||||||
