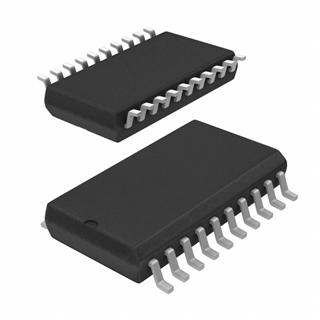

Product Summary

The SN75185DW is a multiple RS-232 driver and receiver. It combines three drivers and five receivers from the TI SN75188 and SN75189 bipolar quadruple drivers and receivers, respectively. The SSN75185DW complies with the requirements of the TIA/EIA-232-F and ITU v.28 standards. These standards are for data interchange between a host computer and peripheral at signaling rates up to 20 kbit/s. The switching speeds of the SN75185DW are fast enough to support rates up to 120 kbit/s with lower capacitive loads (shorter cables). It is characterized for operation over the temperature range of 0℃ to 70℃.

Parametrics

SN75185DW absolute maximum ratings: (1)Supply voltage:10 V; (2)Supply voltage:5 V; (3)Supply voltage:–15 V; (4)Input voltage range:Driver:–15V to 7V, Receiver:–30V to 30V; (5)Driver output voltage range:–15V to 15V; (6)Receiver low-level output current:20 mA; (7)Package thermal impedance:58℃/W; (8)Operating virtual junction temperature:150℃; (9)Electrostatic discharge: Human-Body Mode: RS-232 pins, class 3, A:10kV,All pins, class 3, A:3.5kV; Machine Model:RS-232 pins, class 3, B:600V, All pins, class 3, B:250V; (10)Storage temperature range:–65℃ to 150℃.

Features

SN75185DW features: (1)Single Chip With Easy Interface Between UART and Serial-Port Connector of IBM PC/AT and Compatibles; (2)Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards; (3)Supports Data Rates up to 120 kbit/s; (4)ESD Protection Meets or Exceeds 10 kV on RS-232 Pins and 3.5 kV on All Other Pins(Human-Body Model); (5)Pin-to-Pin Compatible With the SN75C185.

Diagrams

SN75185DW circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN75185DW
SN75185DW
Texas Instruments
Buffers & Line Drivers Mult RS232 Driver
Data Sheet
0-1: $0.53
1-25: $0.42
25-100: $0.37
100-250: $0.32
SN75185DWE4
SN75185DWE4
Texas Instruments
RS-232 Interface IC Multiple RS-232 Driver and Receiver
Data Sheet
0-1: $0.47
1-25: $0.37
25-100: $0.34
100-250: $0.30
SN75185DWRG4
SN75185DWRG4
Texas Instruments
RS-232 Interface IC Multiple RS-232 Driver and Receiver
Data Sheet
0-1: $0.47
1-25: $0.37
25-100: $0.34
100-250: $0.30
SN75185DWRE4
SN75185DWRE4
Texas Instruments
RS-232 Interface IC Multiple RS-232 Driver and Receiver
Data Sheet
0-1: $0.47
1-25: $0.37
25-100: $0.34
100-250: $0.30
SN75185DWG4
SN75185DWG4
Texas Instruments
RS-232 Interface IC Multiple RS-232 Driver and Receiver
Data Sheet
0-1: $0.47
1-25: $0.37
25-100: $0.34
100-250: $0.30
SN75185DWR
SN75185DWR
Texas Instruments
Buffers & Line Drivers Multiple RS-232
Data Sheet
0-1: $0.47
1-25: $0.37
25-100: $0.34
100-250: $0.30
