Product Summary

Parametrics

Manufacturer: Texas Instruments
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Number of Elements: 2
Number of Bits per Element: 8
Current - Output High, Low: 32mA, 64mA
Series: 74LVTH
Voltage - Supply: 2.7 V ~ 3.6 V
Logic Type: Registered Transceiver, Non-Inverting
Packaging: TubeAlternate Packaging
Package / Case: 56-BSSOP (0.295", 7.50mm Width)
Supplier Device Package: 56-SSOP

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

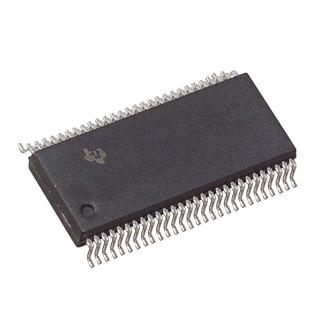

SN74LVTH16646DL
SN74LVTH16646DL


IC BUS TRANSCVR 16BIT 56SSOP

Data Sheet

0-1: $1.51
1-10: $1.35
10-100: $1.11
100-250: $1.00
250-500: $0.90
500-1000: $0.76
1000-2500: $0.72
2500-5000: $0.69
5000-10000: $0.67
SN74LVTH16646DLG4
SN74LVTH16646DLG4


IC BUS TRANSCVR 16BIT 56SSOP

Data Sheet

0-1000: $0.84
SN74LVTH16646DLR
SN74LVTH16646DLR

Texas Instruments

Bus Transceivers 3.3 V ABT 16-Bit Bus Xcvr/Reg

Data Sheet

0-600: $0.85
600-1000: $0.71
1000-2000: $0.68
2000-5000: $0.64
