SN74LVTH162244DGGR

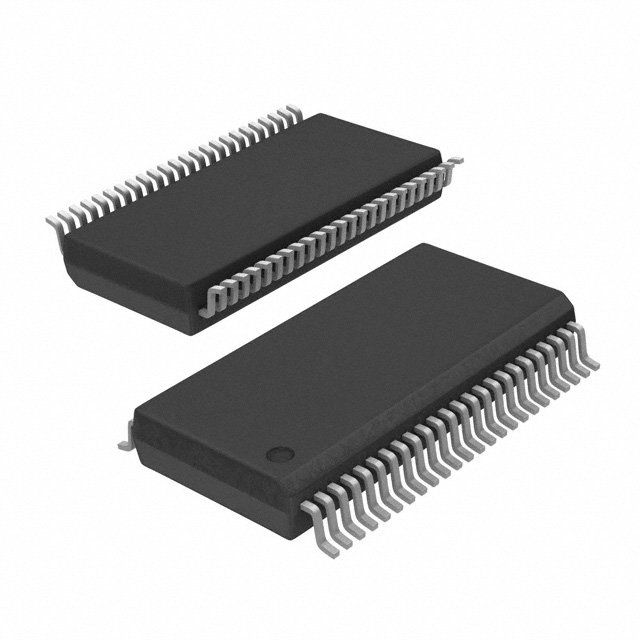

SN74LVTH162244DGGR, 16-bit buffer and line driver, TSSOP, 4.6V, 30mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.58~0.58 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.58~0.58

PartNumber:: SN74LVTH162244DGGR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:SN74LVTH162244DGGR
US $0.58 - 0.58
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN74LVTH162244DGGR is a 16-bit buffer and line driver designed for low-voltage (3.3-V) VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. This device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. The SN74LVTH162244DGGR provides true outputs and symmetrical active-low output-enable (OE) inputs.

Parametrics

SN74LVTH162244DGGR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 4.6 V; (2)Input voltage range, VI: -0.5 V to 7 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 V to 7 V; (4)Voltage range applied to any output in the high state, VO: -0.5 V to VCC + 0.5 V; (5)Current into any output in the low state, IO: 30 mA; (6)Current into any output in the high state, IO: 30 mA; (7)Input clamp current, IIK (VI < 0): 50 mA; (8)Output clamp current, IOK (VO < 0): 50 mA; (9)Package thermal impedance, θJA: DGG package: 70℃/W; DL package: 63℃/W; GQL/ZQL package: 42℃/W; (10)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74LVTH162244DGGR features: (1)Members of the Texas Instruments Widebus. Family; (2)Output Ports Have Equivalent 22-Ω Series Resistors, So No External Resistors Are Required; (3)Support Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC); (4)Support Unregulated Battery Operation Down to 2.7 V; (5)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (6)Ioff and Power-Up 3-State Support Hot Insertion; (7)Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors; (8)Distributed VCC and GND Pins Minimize High-Speed Switching Noise; (9)Flow-Through Architecture Optimizes PCB Layout; (10)Latch-Up Performance Exceeds 500 mA Per JESD 17; (11)ESD Protection Exceeds JESD 22, 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A).
