Product Summary
The SN74LVT125DR is a 3.3-V ABT quadruple bus buffer with 3-state outputs. The SN74LVT125DR features independent line drivers with 3-state outputs. Each output is in the high-impedance state when the associated output-enable (OE) input is high. Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pull up or pull down resistors with the bus-hold circuitry is not recommended. The SN74LVT125DR is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Parametrics
SN74LVT125DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5V to 4.6V; (2)Input voltage range, VI: -0.5V to 7V; (3)Voltage range applied to any output in the high state or power-off state, VO: -0.5V to 7V; (4)Current into any output in the low state, IO: 128mA; (5)Current into any output in the high state, IO: 64mA; (6)Input clamp current, IIK (VI＜0): -50mA; (7)Output clamp current, IOK (VO＜0): -50mA; (8)Package thermal impedance, θJA: 86℃/W; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74LVT125DR features: (1)Supports Mixed-Mode Signal Operation (5-V Input and Output Voltages With 3.3-V VCC); (2)Supports Unregulated Battery Operation Down to 2.7V; (3)Typical VOLP (Output Ground Bounce)＜0.8V at VCC =3.3V, TA=25℃; (4)Ioff Supports Partial-Power-Down Mode Operation; (5)Bus-Hold Data Inputs Eliminate the Need for External Pullup Resistors; (6)Latch-Up Performance Exceeds 500mA Per JEDEC Standard JESD-17; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A).

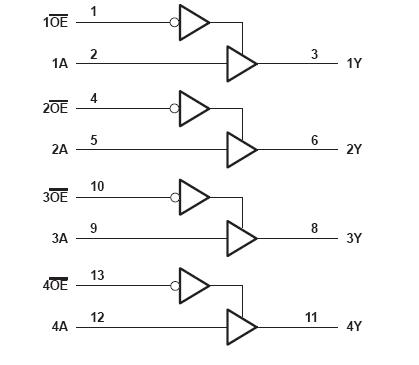

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVT125DR |
Texas Instruments |
Buffers & Line Drivers Tri-State 3.3V ABT |
Data Sheet |
Negotiable |
|
||||||
|
SN74LVT125DRG4 |
|
IC BUS BUFF TRI-ST QD 14SOICN |
Data Sheet |
|
|
||||||
