Product Summary

The SN74LVCH16245ADGGR is a 16-bit bus transceiver with 3-state outputs. The SN74LVCH16245ADGGR is designed for 1.65-V to 3.6-V VCC operation. This device can be used as two 8-bit transceivers or one 16-bit transceiver. The SN74LVCH16245ADGGR is designed for asynchronous communication between data buses. The logic levels of the direction-control (DIR) input and the output-enable (OE) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports always is active and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

Parametrics

SN74LVCH16245ADGGR absolute maximum ratings: (1)Supply voltage range: -0.5V to 6.5V; (2)Input voltage range: -0.5V to 6.5V; (3)Voltage range applied to any output in the high-impedance or power-off state: -0.5V to 6.5V; (4)Voltage range applied to any output in the high state: -0.5V to VCC+0.5V; (5)Continuous output current: ±50mA; (6)Continuous current through each VCC or GND: ±100mA; (7)Input clamp current VI<0 :-50mA; (8)Output clamp current VO<0 :-50mA; (9)θJA Package thermal impedance: 70℃/W; (10)Storage temperature range: -65℃ to 150℃.

Features

SN74LVCH16245ADGGR features: (1)Member of the Texas Instruments Widebus Family; (2)Operates From 1.65 V to 3.6V; (3)Inputs Accept Voltages to 5.5V; (4)Max tpd of 4 ns at 3.3V; (5)Typical VOLP (Output Ground Bounce)<0.8V at VCC = 3.3V, TA=25℃; (6)Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3V, TA=25℃; (7)Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC); (8)Ioff Supports Partial-Power-Down Mode Operation; (9)Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors; (10)Latch-Up Performance Exceeds 250mA Per JESD 17; (11)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A).

Diagrams

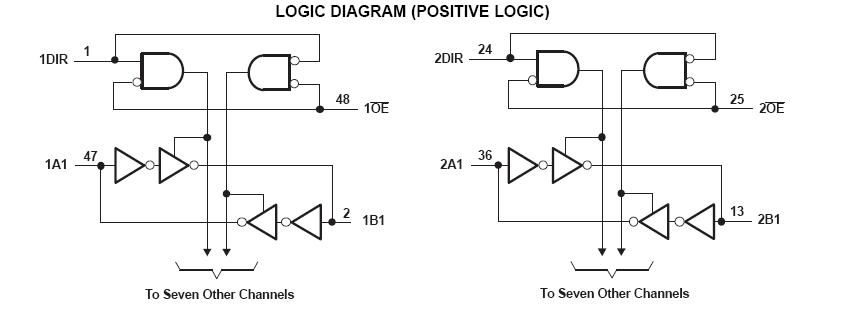

SN74LVCH16245ADGGR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVCH16245ADGGR
SN74LVCH16245ADGGR

Texas Instruments

Bus Transceivers Tri-State 16-Bit Bus

Data Sheet

0-1: $0.62
1-25: $0.49
25-100: $0.44
100-250: $0.42
