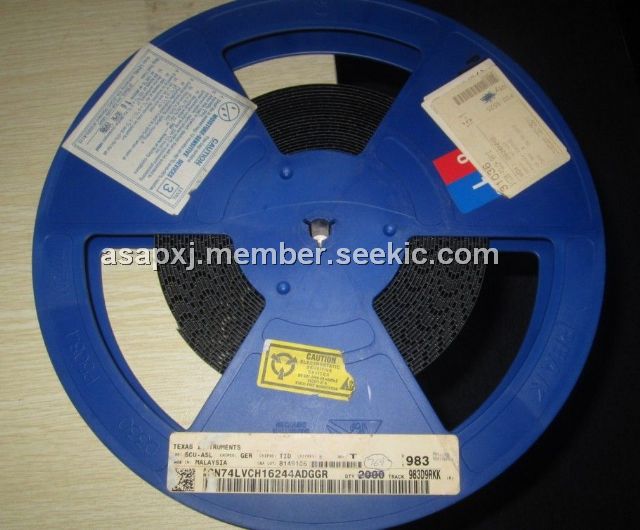

SN74LVCH16244ADGGR

Product Summary

The SN74LVCH16244ADGGR is a 16-bit bus transceiver. This 16-bit (dual-octal) noninverting bus transceiver is designed for 1.65-V to 3.6-V VCC operation. The SN74LVCH16244ADGGR is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The control-function implementation minimizes external-timing requirements. The SN74LVCH16244ADGGR is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Parametrics

SN74LVCH16244ADGG absolute maximum ratings: (1)Supply voltage range: -0.5V to 6.5V; (2)Input voltage range: -0.5V to 6.5V; (3)Voltage range applied to any output in the high-impedance or power-off state: -0.5V to 6.5V; (4)Voltage range applied to any output in the high state: -0.5V to VCC+0.5V; (5)Input clamp current: VI＜0: -50mA; (6)Output clamp current: VO＜0: -50mA; (7):Continuous current through each VCC or GND: ±100mA; (8)Continuous output current: ±50mA; (9)Package thermal impedance: DGG package 70℃/W, DGV package 58℃/W DL package 63℃/W, GQL/ZQL package 42℃/W, GRD/ZRD package 36℃/W; (10)Storage temperature range: -65℃ to 150℃.

Features

SN74LVCHR16245AGR features: (1)Member of the Texas Instruments Widebus Family; (2)Operates From 1.65 V to 3.6 V; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 4.1 ns at 3.3 V; (5)Typical VOLP (Output Ground Bounce) ＜0.8 V at VCC = 3.3 V, TA = 25℃; (6)Typical VOHV (Output VOH Undershoot) ＞2 V at VCC = 3.3 V, TA = 25℃; (7)Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC); (8)Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors; (9)All Outputs Have Equivalent 26-W Series Resistors, So No External Resistors Are Required; (10)Ioff Supports Partial-Power-Down Mode Operation; (11)Latch-Up Performance Exceeds 250 mA Per JESD 17; (12)ESD Protection Exceeds JESD 22 -2000-V Human-Body Model (A114-A)- 200-V Machine Model (A115-A).

Diagrams
