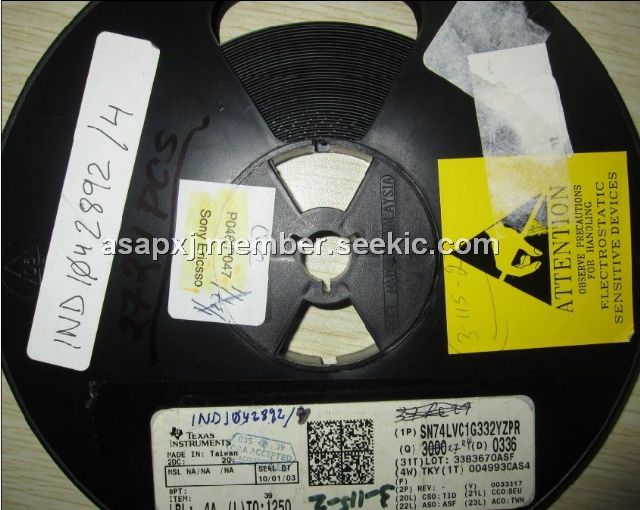

SN74LVC1G332YZPR

SN74LVC1G332YZPR, single 3-input positive-or gate, BGA, –0.5V to 6.5V, ±50mA, ±100mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.08 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.08~0.08

PartNumber:: SN74LVC1G332YZPR

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-07

From Other Seller

Part Number:SN74LVC1G332YZPR
US $0.08 - 0.08
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN74LVC1G332YZPR is a single 3-input positive-or gate. The SN74LVC1G332YZPR performs the Boolean function in Y=A+B+C or Y=A× B×C positive logic. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC1G332YZPR is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Parametrics

SN74LVC1G332YZPR absolute maximum ratings: (1)Supply voltage range: –0.5V to 6.5V; (2)Input voltage range: –0.5V to 6.5V; (3)Voltage range applied to any output in the high-impedance or power-off state: –0.5V to 6.5V; (4)Voltage range applied to any output in the high or low state:–0.5V to VCC + 0.5V; (5)Input clamp current VI＜0: –50mA; (6)Output clamp current VO＜0: –50mA; (7)Continuous output current: ±50mA; (8)Continuous current through VCC or GND: ±100mA; (9)θJA Package thermal impedance: 123℃/W; (10)Storage temperature range: –65℃ to 150℃.

Features

SN74LVC1G332YZPR features: (1)Available in the Texas Instruments NanoStar and NanoFree Packages; (2)Supports 5-V VCC Operation; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 4.5 ns at 3.3 V; (5)Low Power Consumption, 10-μA Max ICC; (6)±24-mA Output Drive at 3.3 V; (7)Ioff Supports Partial-Power-Down Mode Operation; (8)Latch-Up Performance Exceeds 100mA Per JESD 78, Class II; (9)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101).
