Product Summary
The SN74LVC1G14DCKR is a single Schmitt-trigger inverter designed for 1.65-V to 5.5-V V CC operation. The SN74LVC1G14DCKR device contains one inverter and performs the Boolean function Y = A . The device functions as an independent inverter, but because of Schmitt action, it may have different input threshold levels for positive-going (V T+ ) and negative-going (V T – ) signals. NanoStar and NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device SN74LVC1G14DCKR is fully specified for partial-power-down applications using I off. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Parametrics
SN74LVC1G14DCKR absolute maximum ratings: (1)VCC, Supply voltage range: – 0.5 to 6.5 V; (2)VI, Input voltage range: – 0.5 to 6.5 V; (3)VO, Voltage range applied to any output in the high-impedance or power-off state: – 0.5 to 6.5 V; (4)VO, Voltage range applied to any output in the high or low state: – 0.5 to V CC + 0.5 V; (5)IIK, Input clamp current: -50mA at VI< 0; (6)IOK, Output clamp current: -50mA at V O < 0; (7)IO, Continuous output current: ±50 mA; (8)Continuous current through V CC or GND: ±100 mA; (9)θJA, Package thermal impedance: 154℃/W; (10)Tstg, Storage temperature range: – 65 to 150℃.
Features
SN74LVC1G14DCKR features: (1)Available in the Texas Instruments NanoStar and NanoFree Packages; (2)Supports 5-V V CC Operation; (3)Inputs Accept Voltages to 5.5 V; (4)Max t pd of 4.6 ns at 3.3 V; (5)Low Power Consumption, 10- μ A Max ICC; (6)± 24-mA Output Drive at 3.3 V; (7)Ioff Supports Partial-Power-Down Mode Operation; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (9)ESD Protection Exceeds JESD 22.

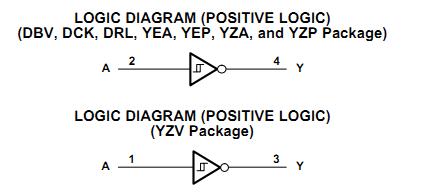

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LVC1G14DCKR |
Texas Instruments |
Inverters Single Schmitt Trig |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G14DCKRE4 |
Texas Instruments |
Inverters Single Schmitt Trig |
Data Sheet |
|
|
||||||||||||
|
SN74LVC1G14DCKRG4 |
Texas Instruments |
Inverters Single Schmitt Trig |
Data Sheet |
|
|
||||||||||||
