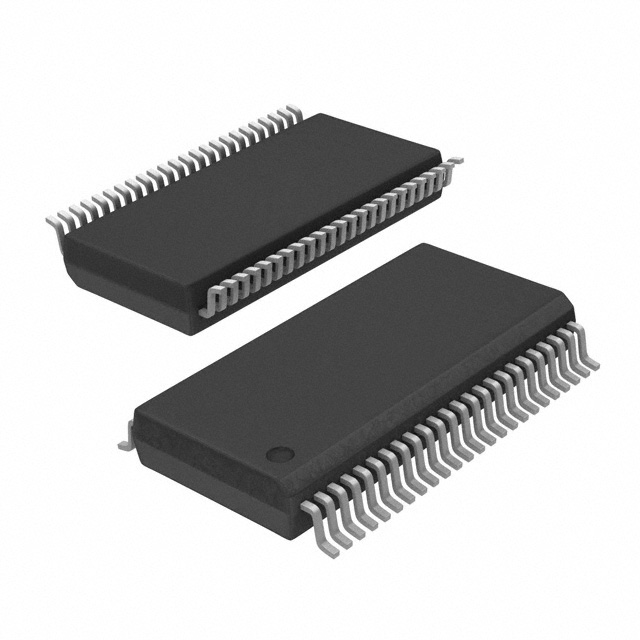

SN74LVC16244ADGGR

16-bit buffer/driver, TSSOP, -0.5 to 6.5V, -50mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.10

PartNumber:: SN74LVC16244ADGGR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:SN74LVC16244ADGGR
US $0.10 - 0.10
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

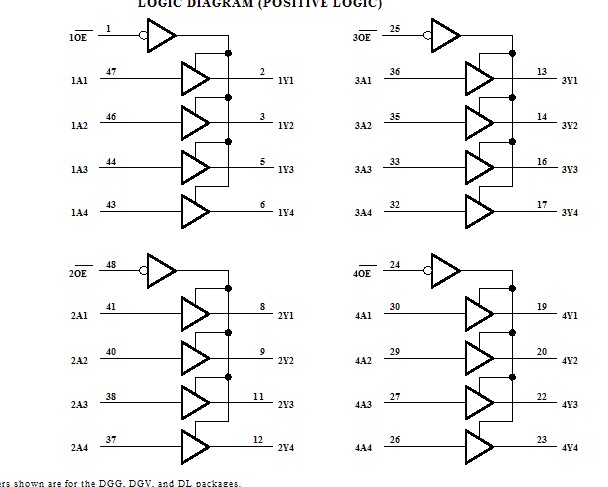

The SN74LVC16244ADGGR 16-bit buffer/driver is designed for 1.65-V to 3.6-V V CC operation. The SN74LVC16244ADGGR is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SN74LVC16244ADGGR can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical active-low output-enable ( OE ) inputs.

Parametrics

SN74LVC16244ADGGR absolute maximum ratings: (1)Supply voltage range:-0.5 to 6.5V; (2)Input voltage range:-0.5 to 6.5V; (3)Voltage range applied to any output in the high-impedance or power-off state:-0.5 to 6.5V; (4)Voltage range applied to any output in the high or low state:-0.5 to VCC+0.5V; (5)Input clamp current: V I< 0:-50mA; (6)Output clamp current: V O < 0:-50mA; (7)Continuous output current:±50mA; (8)Continuous current through each V or GND:±100mA; (9)Package thermal impedance:70° C/W; (10)Storage temperature range:-65 to 150° C.

Features

SN74LVC16244ADGGR features: (1)Member of the Texas Instruments Widebus Family; (2)Operates From 1.65 V to 3.6 V; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 4.1 ns at 3.3 V; (5)Typical V OLP (Output Ground Bounce) < 0.8 V at V CC = 3.3 V, TA = 25 ° C; (6)Typical V OHV (Output V OH Undershoot) > 2 V at V CC = 3.3 V, TA = 25 ° C; (7)I off Supports Partial-Power-Down Mode Operation; (8)Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V V CC ); (9)Latch-Up Performance Exceeds 250 mA Per JESD 17; (10)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 1000-V Charged-Device Model (C101).
