Product Summary

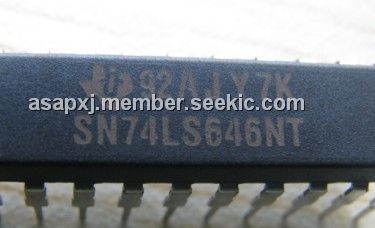

The SN74LS646NT is an octal bus transceiver and register. It consists of bus transceiver circuits with 3-state or open-collector outputs, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal registers. Data on the A or B bus will be clocked into the registers on the low-to-high transistion of the appropriate clock pin. TheSN74LS646NT is characterized for operation over the full military temperature range of 0 to 70℃.
Parametrics
SN74LS646NT absolute maximum ratings: (1)supply voltage, VCC: 7V; (2)input voltage: control inputs: 7V; I/O ports: 5.5V; (3)operating free-air temperature range: 0 to 70℃; (4)storage temperature range: -65 to 150℃.
Features
SN74LS646NT features: (1)independent registers for A and B buses; (2)multiplexed real-time and stored data; (3)choice of true or inverting data paths; (4)choice of 3-state or open-collector outputs; (5)included among the package options are compact 24-pin 300-mile wide plastic and cermaic DIPs ceramic chip carriers and plastic small outline packages.

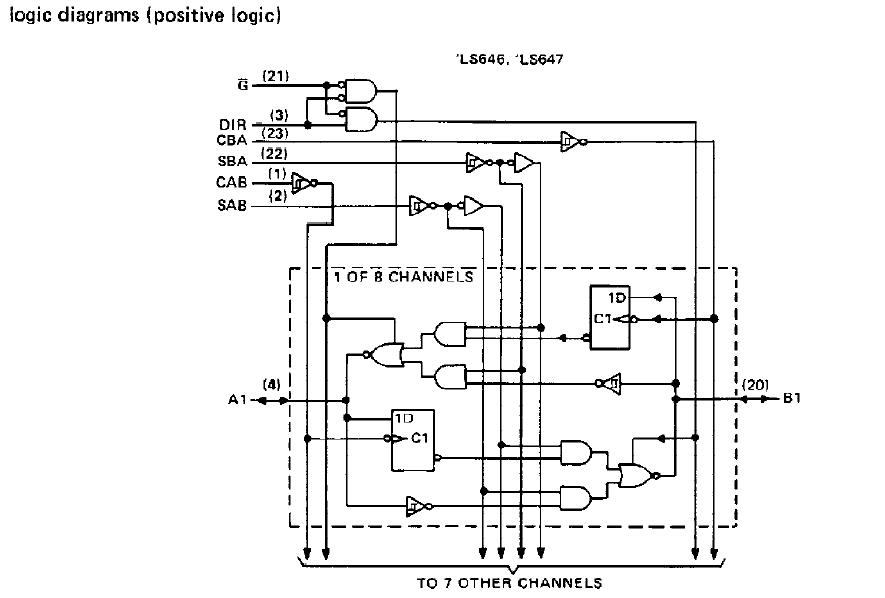

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LS646NT |
Texas Instruments |
Bus Transceivers Octal Bus Transcvrs & Reg |
Data Sheet |
|
|
||||||||||||
|
SN74LS646NTE4 |
Texas Instruments |
Bus Transceivers Octal Bus Transcvrs & Reg |
Data Sheet |
|
|
||||||||||||
