Product Summary
The SN74LS245NSR octal bus transceiver is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The SN74LS245NSR allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can disable the SN74LS245NSR so that the buses are effectively isolated.
Parametrics
SN74LS245NSR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Package thermal impedance, JA: DB package: 70℃/W, DW package: 58℃/W, N package: 69℃/W, NS package: 60℃/W; (4)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74LS245NSR features: (1)3-State Outputs Drive Bus Lines Directly; (2)PNP Inputs Reduce dc Loading on Bus Lines; (3)Hysteresis at Bus Inputs Improves Noise Margins; (4)Typical Propagation Delay Times Port to Port, 8 ns.

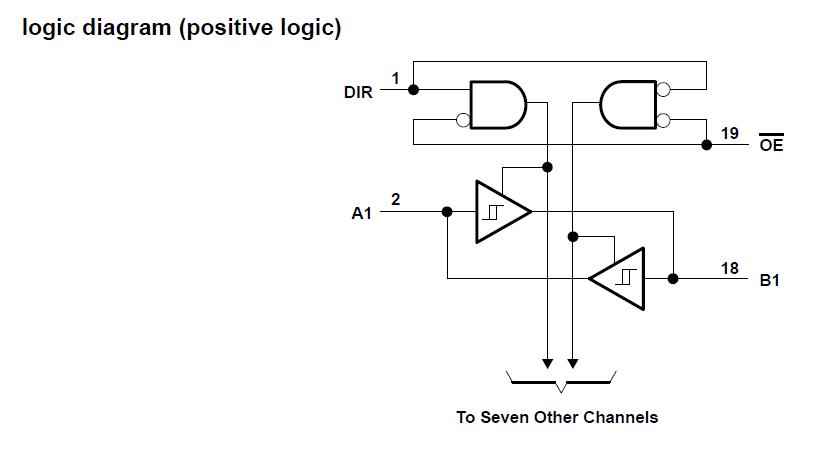

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LS245NSR |
Texas Instruments |
Bus Transceivers Octal bus Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN74LS245NSRE4 |
Texas Instruments |
Bus Transceivers Octal bus Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN74LS245NSRG4 |
Texas Instruments |
Bus Transceivers Octal bus Transceiver |
Data Sheet |
|
|
||||||||||||
