Product Summary

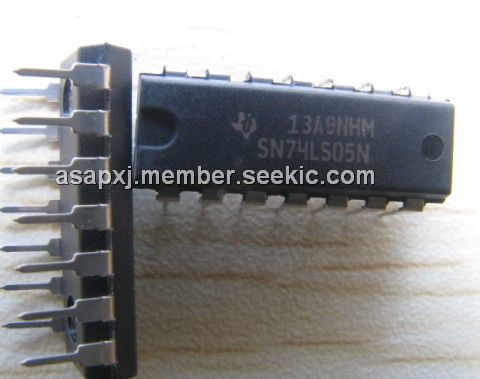

The SN74LS05N is a hex inverter with open-collector outputs, which contains six independent inverters. To perform correctly, the open-collector outputs require pullup resistors. The SN74LS05N may be connected to other open-collector outputs to implement active-low wired-OR or active-high wire-AND functions. Open-collector devices often are used to generate high VOH levels.

Parametrics

SN74LS05N absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Off-state output voltage, VO: 7 V; (4)Package thermal impedance, θJA: D package: 86℃/W, DB package: 96℃/W, N package: 80℃/W, NS package: 76℃/W; (5)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74LS05N features: (1)Package Options Include Plastic Small-Outline (D, NS), Shrink Small-Outline (DB), and Ceramic Flat (W) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs; (2)Dependable Texas Instrument Quality and Reliability.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74LS05N
SN74LS05N
Texas Instruments
Buffers & Line Drivers Hex w/ OC Output
Data Sheet
0-1: $0.49
1-25: $0.44
25-100: $0.39
100-250: $0.34
SN74LS05NE4
SN74LS05NE4
Texas Instruments
Buffers & Line Drivers Hex inverters w/open collector output
Data Sheet
0-1: $0.49
1-25: $0.44
25-100: $0.39
100-250: $0.34
SN74LS05NSR
SN74LS05NSR
Texas Instruments
Buffers & Line Drivers Hex inverters w/open collector output
Data Sheet
0-1: $0.49
1-25: $0.40
25-100: $0.36
100-250: $0.32
SN74LS05NSRG4
SN74LS05NSRG4
Texas Instruments
Buffers & Line Drivers Hex inverters w/open collector output
Data Sheet
0-1400: $0.23
1400-2000: $0.21
2000-5000: $0.21
5000-10000: $0.20
