Product Summary
The SN74HCT373PWR is an octal transparent d-type latche with 3-state outputs. It features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The SN74HCT373PWR is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The eight latches of the SN74HCT373PWR are transparent D-type latches. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the levels that were set up at the D inputs.
Parametrics
SN74HCT373PWR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Storage temperature range, Tstg: –65℃ to 150℃.
Features
SN74HCT373PWR features: (1)Operating Voltage Range of 4.5 V to 5.5 V; (2)High-Current 3-State True Outputs Can Drive Up To 15 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 21 ns; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Inputs Are TTL-Voltage Compatible; (8)Eight High-Current Latches in a Single Package; (9)Full Parallel Access for Loading.

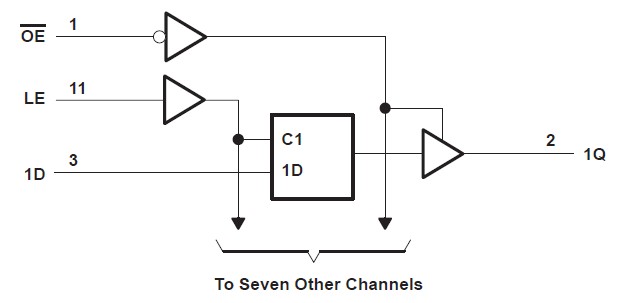

Diagrams
