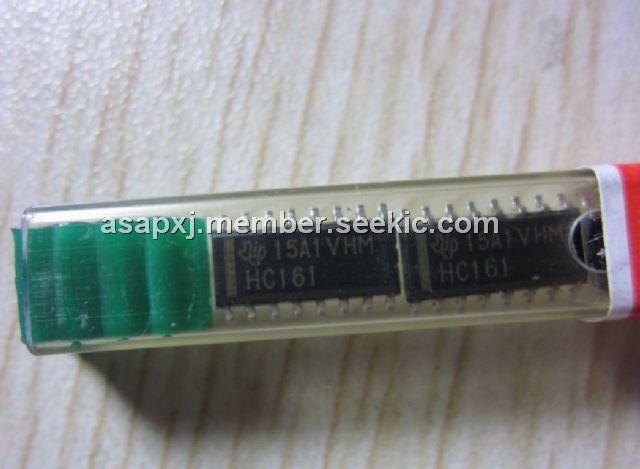

SN74HC161D

SN74HC161D, 4-BIT SYNCHRONOUS BINARY COUNTER, SOIC, 0.5 V to 7 V, ±20 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~0.16 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.16~0.16

PartNumber:: SN74HC161D

Brand:: Texas Instruments - TI | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-13

From Other Seller

Part Number:SN74HC161D
US $0.16 - 0.16
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN74HC161D is a 4-bit synchronous binary counter. The SN74HC161D features an internal carry look-ahead for application in high-speed counting designs. The SN74HC161D is provided by having all flip-flops clocked simultaneously so that the outputs change coincident with each other when so instructed by the count-enable (ENP, ENT) inputs and internal gating. This mode of operation eliminates the output counting spikes that are normally associated with synchronous (ripple-clock) counters. A buffered clock (CLK) input triggers the four flip-flops on the rising (positive-going) edge of the clock waveform.

Parametrics

SN74HC161D absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input clamp current, IIK (VI＜0 or VI＞VCC): ±20 mA; (3)Output clamp current, IOK (VO ＜ 0 or VO ＞ VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 73℃/W; (7)N package: 67℃/W; (8)NS package: 64℃/W; (9)PW package: 108℃/W; (10)Storage temperature range, Tstg: 65℃ to 150℃.

Features

SN74HC161D features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 14 ns; (5)±4-mA Output Drive at 5 V Low Input Current of 1 μA Max; (6)Internal Look-Ahead for Fast Counting; (7)Carry Output for n-Bit Cascading; (8)Synchronous Counting; (9)Synchronously Programmable.
