Product Summary

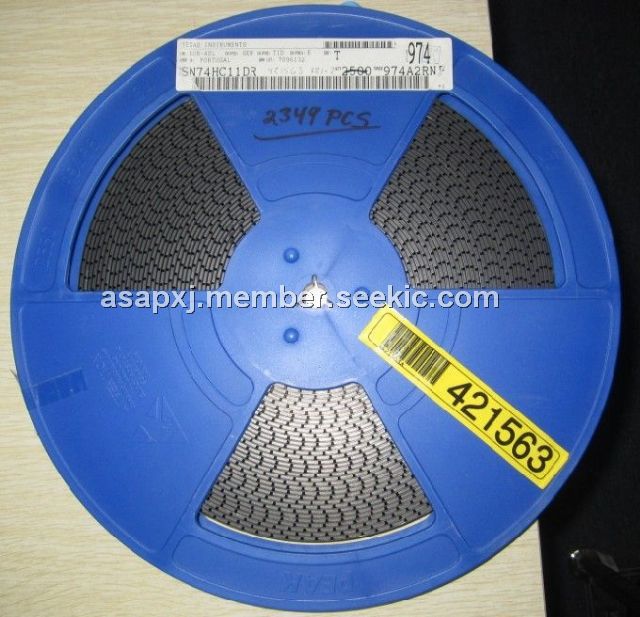

The SN74HC11DR is a triple 3-input positive-and gate. It contains three independent 3-input AND gates. The SN74HC11DR performs the Boolean function Y=A×B×C or Y=A+B+C in positive logic.
Parametrics
SN74HC11DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5V to 7V; (2)Input clamp current, IIK (VI＜0 or VI＞VCC): ±20mA; (3)Output clamp current, IOK (VO＜0 or VO＞VCC): ±20mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25mA; (5)Continuous current through VCC or GND: ±50mA; (6)Package thermal impedance, θJA: 86℃/W; (7)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74HC11DR features: (1)Wide Operating Voltage Range of 2V to 6V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-μA Max ICC; (4)Typical tpd = 8 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC11DR |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Triple 3 Input |
Data Sheet |
|
|
||||||||||||
|
SN74HC11DRE4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-AND Gate |
Data Sheet |
|
|
||||||||||||
|
SN74HC11DRG4 |
Texas Instruments |
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-AND Gate |
Data Sheet |
|
|
||||||||||||
