Product Summary

The SN74HC08DR is a quadruple 2-input positive-and gate. It contains four independent 2-input AND gates. The SN74HC08DR performs the Boolean function Y= A×B or Y=A +B in positive logic.

Parametrics

SN74HC08DR absolute maximum ratings: (1)Supply voltage range: –0.5V to 7 V; (2)Input clamp current VI<0 or VI>VCC: ±20mA; (3)Output clamp current(2) VO<0 : ±20mA; (4)Continuous output current VO = 0 to VCC: ±25mA; (5)Continuous current through VCC or GND ±50mA; (6)θJA Package thermal impedance D package: 86℃/W; (7)Storage temperature range: –60℃ to 150℃.

Features

SN74HC08DR features: (1) Wide Operating Voltage Range of 2V to 6V; (2) Outputs Can Drive Up To 10 LSTTL Loads; (3) Low Power Consumption, 20-μA Max ICC; (4) Typical tpd = 8 ns; (5)±4-mA Output Drive at 5V; (6) Low Input Current of 1μA Max.

Diagrams

SN74HC08DR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

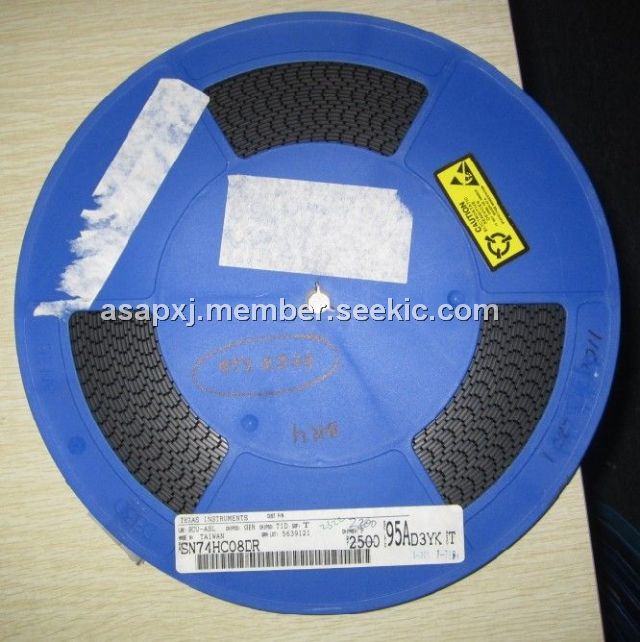

SN74HC08DR
SN74HC08DR

Texas Instruments

Gates (AND / NAND / OR / NOR) Quad 2-Input

Data Sheet

0-1: $0.32
1-25: $0.18
25-100: $0.15
100-250: $0.11
SN74HC08DRE4
SN74HC08DRE4

Texas Instruments

Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-AND Gates

Data Sheet

0-1: $0.23
1-25: $0.19
25-100: $0.14
100-250: $0.09
SN74HC08DRG4
SN74HC08DRG4

Texas Instruments

Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-AND Gates

Data Sheet

0-1: $0.23
1-25: $0.19
25-100: $0.14
100-250: $0.09
