Product Summary
The SN74AS27DR is a triple 3-input positive-NOR gate. It contains three independent 3-input positive-NOR gates. The SN74AS27DR performs the Boolean functions Y= A×B×C or Y=A+B+C in positive logic. The SN74AS27DR is characterized for operation over the full military temperature range of 0℃ to 70℃.
Parametrics
SN74AS27DR absolute maximum ratings: (1)Supply voltage, VCC: 7V; (2)Input voltage, VI: 7V; (3)Operating free-air temperature range, TA: 0℃ to 70℃; (4)Storage temperature range: -65℃ to 150℃.
Features
SN74AS27DR feature: Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.

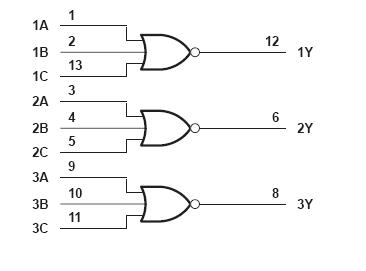

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AS27DR |
|
IC GATE POS-NOR TRPL 3IN 14-SOIC |
Data Sheet |
Negotiable |
|
||||
|
SN74AS27DRE4 |
|
IC GATE POS-NOR TRPL 3IN 14-SOIC |
Data Sheet |
Negotiable |
|
||||
|
SN74AS27DRG4 |
|
IC GATE POS-NOR TRPL 3IN 14-SOIC |
Data Sheet |
Negotiable |
|
||||
