Product Summary

The AD706JRZ is a dual, low power, bipolar op amp that has the low input bias current of a BiFET amplifier, but which offers a significantly lower IB drift over temperature. It utilizes superbeta bipolar input transistors to achieve picoampere input bias current levels (similar to FET input amplifiers at room temperature), while its IB typically only increases by 5× at 125℃ (unlike a BiFET amp, for which IB doubles every 10℃ for a 1000× increase at 125℃). The AD706JRZ also achieves the microvolt offset voltage and low noise characteristics of a precision bipolar input amplifier.

Parametrics

AD706JRZ absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation (Total: Both Amplifiers): 650 mW; (3)Input Voltage: ±VS; (4)Differential Input Voltage3: +0.7 Volts; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range (Q): –65℃ to +150℃; (7)Storage Temperature Range (N, R): –65℃ to +125℃; (8)Operating Temperature Range: 0℃ to +70℃; (9)Lead Temperature (Soldering 10 secs): +300℃.

Features

AD706JRZ features: (1)high DC precision: 50 μV max Offset Voltage, 0.6 μV/℃ max Offset Drift, 110 pA max Input Bias Current; (2)low noise: 0.5 μV p-p Voltage Noise, 0.1 Hz to 10 Hz; (3)low power: 750 μA Supply Current; (4)Available in 8-Lead Plastic Mini-DlP, Hermetic Cerdip and Surface Mount (SOIC) Packages; (5)Available in Tape and Reel in Accordance with EIA-481A Standard; (6)Single Version: AD705, Quad Version: AD704.

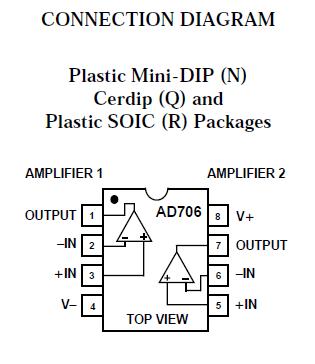

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD706JRZ
AD706JRZ


IC OPAMP GP DUAL PREC 15MA 8SOIC

Data Sheet

0-1: $3.35
1-10: $3.00
10-100: $2.46
100-250: $2.22
250-500: $1.99
500-1000: $1.68
1000-2500: $1.60
AD706JRZ-REEL
AD706JRZ-REEL


IC OPAMP GP DUAL PREC 15MA 8SOIC

Data Sheet

0-2500: $1.60
AD706JRZ-REEL7
AD706JRZ-REEL7


IC OPAMP GP DUAL PREC 15MA 8SOIC

Data Sheet

0-1000: $1.68
