Product Summary
The SN74AS250ADWR is a 1-of-16 data generator/multiplexer with 3-state outputs. The SN74AS250ADWR provides full binary decoding to select 1-of-16 data inputs or use sources as an input with an inverting W output. The selected sources are buffered with symmetrical propagation delay times. This reduces the possibility of transients occurring at the output. The SN74AS250ADWR is characterized for operation over the full military temperature range of 0℃ to 70℃.
Parametrics
SN74AS250ADWR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Operating free-air temperature range, TA: 0℃ to 70℃; (4)Storage temperature range:–65℃ to 150℃.
Features
SN74AS250ADWR features: (1)4-Line to 1-Line Multiplexers That Can Select 1-of-16 Data Inputs; (2)Applications: Boolean Function Generator, Parallel-to-Serial Converter, Data Source Selector; (3)Buffered 3-State Bus Driver Inputs Permit Multiplexing From n Lines to One Line; (4)Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (NT) and Ceramic (JT) 300-mil DIPs.

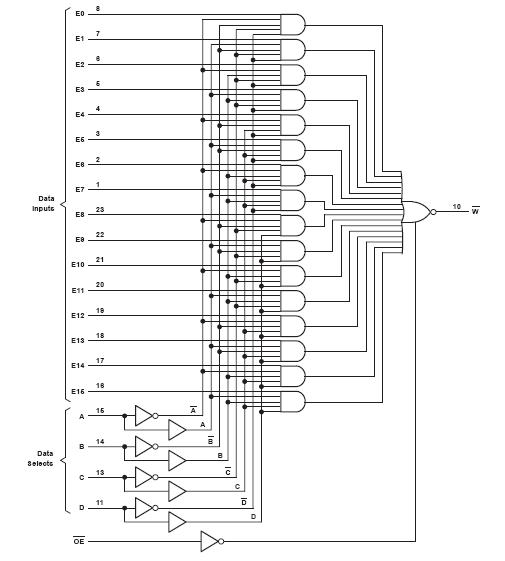

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74AS250ADWR |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 1-of-16 Data Gen/ Mltplxr W/3-St Otpt |
Data Sheet |
Negotiable |
|
||||
|
SN74AS250ADWRE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 1-of-16 Data Gen/ Mltplxr W/3-St Otpt |
Data Sheet |
Negotiable |
|
||||
|
SN74AS250ADWRG4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 1 Of 16 Data Genratrs Multiplxr |
Data Sheet |
Negotiable |
|
||||
