Product Summary

Parametrics

Manufacturer: Texas Instruments
Features: -
Logic Type: NAND Gate
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Number of Inputs: 3
Number of Circuits: 3
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Mounting Type: Through Hole

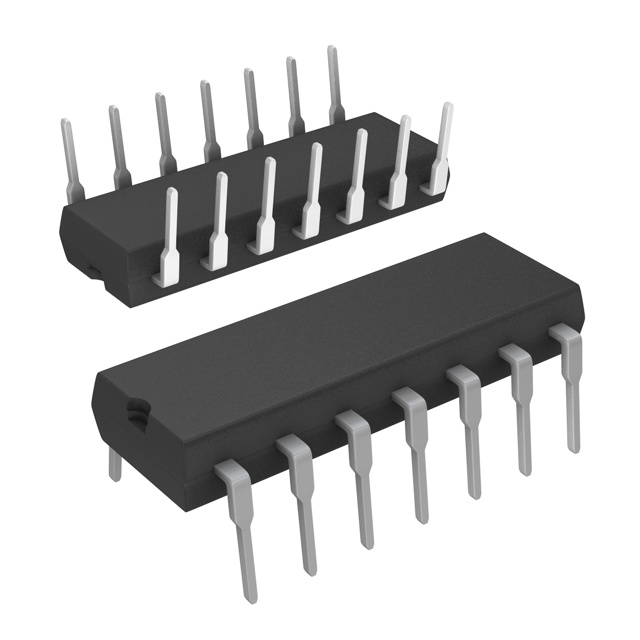

Supplier Device Package: 14-PDIP
Package / Case: 14-DIP (0.300", 7.62mm)
Packaging: Tube
Series: 74AS
Current - Output High, Low: 2mA, 20mA
Max Propagation Delay @ V, Max CL: 4.5ns @ 4.5V ~ 5.5V, 50pF

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74AS10N
SN74AS10N
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-NAND gates
Data Sheet
0-1: $0.80
1-25: $0.65
25-100: $0.59
100-250: $0.52
SN74AS10NSRG4
SN74AS10NSRG4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3 Input Positive NAND Gate
Data Sheet
0-1380: $0.38
1380-2000: $0.35
2000-5000: $0.34
5000-10000: $0.32
SN74AS10NSRE4
SN74AS10NSRE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-NAND gates
Data Sheet
0-1380: $0.38
1380-2000: $0.35
2000-5000: $0.34
5000-10000: $0.32
SN74AS10NSR
SN74AS10NSR
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-NAND gates
Data Sheet
0-1380: $0.38
1380-2000: $0.35
2000-5000: $0.34
5000-10000: $0.32
SN74AS10NE4
SN74AS10NE4
Texas Instruments
Gates (AND / NAND / OR / NOR) Triple 3-Input Positive-NAND gates
Data Sheet
0-1: $0.80
1-25: $0.65
25-100: $0.59
100-250: $0.52
