Product Summary

Parametrics

Manufacturer: Texas Instruments
Logic Type: Inverter, Buffer
Number of Inputs: 1
Features: -
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Number of Circuits: 6
Current - Quiescent (Max): -
Operating Temperature: 0°C ~ 70°C
Mounting Type: Through Hole

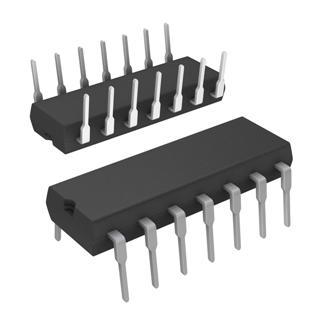

Supplier Device Package: 14-PDIP
Package / Case: 14-DIP (0.300", 7.62mm)
Packaging: Tube
Series: 74AS
Current - Output High, Low: 48mA, 48mA
Max Propagation Delay @ V, Max CL: 4ns @ 4.5V ~ 5.5V, 50pF

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74AS1004AN
SN74AS1004AN

Texas Instruments

Buffers & Line Drivers Hex Inverting

Data Sheet

0-1: $1.50
1-25: $1.35
25-100: $1.22
100-250: $1.11
SN74AS1004ANE4
SN74AS1004ANE4

Texas Instruments

Buffers & Line Drivers HEX INVERTING DRIVERS

Data Sheet

0-1: $1.50
1-25: $1.23
25-100: $1.11
100-250: $1.02
SN74AS1004ANSR
SN74AS1004ANSR

Texas Instruments

Buffers & Line Drivers HEX INVERTING DRIVERS

Data Sheet

0-1490: $0.81
1490-2000: $0.78
2000-5000: $0.75
SN74AS1004ANSRE4
SN74AS1004ANSRE4

Texas Instruments

Buffers & Line Drivers HEX INVERTING DRIVERS

Data Sheet

0-1490: $0.81
1490-2000: $0.78
2000-5000: $0.75
SN74AS1004ANSRG4
SN74AS1004ANSRG4

Texas Instruments

Buffers & Line Drivers Hex Inverting Driver

Data Sheet

0-1490: $0.81
1490-2000: $0.78
2000-5000: $0.75
