Product Summary
The SN74ALS174DR is a hex/quadruple d-type flip-flop with clear. It utilizes TTL circuitry to implement D-type flip-flop logic. The SN74ALS174DR has a direct-clear (CLR) input. It features complementary outputs from each flip-flop. Information at the data (D) inputs meeting the setup-time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock (CLK) input is at either the high or low level, the D-input signal has no effect at the output. The applications of the SN74ALS174DR include Buffer/Storage Registers, Shift Registers, Pattern Generators.
Parametrics
SN74ALS174DR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Package thermal impedance, θJA: D package: 73℃/W; (4)Storage temperature range, Tstg: –65℃ to 150℃.
Features
SN74ALS174DR features: (1)ALS174 and AS174 Contain Six Flip-Flops With Single-Rail Outputs; (2)ALS175 and AS175B Contain Four Flip-Flops With Double-Rail Outputs; (3)Buffered Clock and Direct-Clear Inputs; (4)Applications Include: Buffer/Storage Registers, Shift Registers, Pattern Generators; (5)Fully Buffered Outputs for Maximum Isolation From External Disturbances(AS Only).

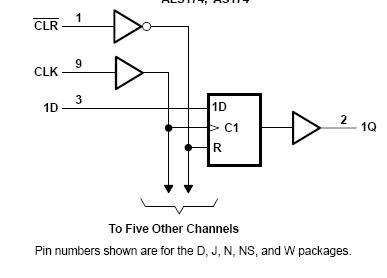

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74ALS174DR |
Texas Instruments |
Flip Flops Hex Pos Edge Trig |
Data Sheet |
|
|
||||||||||||
|
SN74ALS174DRE4 |
Texas Instruments |
Flip Flops Hex D-Typ Pos-Edge- Trig Flip-Flop W/Clr |
Data Sheet |
|
|
||||||||||||
|
SN74ALS174DRG4 |
Texas Instruments |
Flip Flops Hex D-Typ Pos-Edge- Trig Flip-Flop W/Clr |
Data Sheet |
|
|
||||||||||||
