Product Summary
The SN74ALS05ADBR is a hex inverter with open-collector outputs. The SN74ALS05ADBR contains six independent hex inverters with open-collector outputs. The SN74ALS05ADBR performs the Boolean function Y = A. The open-collector outputs require pullup resistors to perform correctly. These outputs can be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels.
Parametrics
SN74ALS05ADBR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage, VI: 7 V; (3)Off-state output voltage: 7 V; (4)Operating free-air temperature range, TA:0℃ to 70℃; (5)Storage temperature range:–65℃ to 150℃.
Features
SN74ALS05ADBR feature: Package Options Include Plastic Small-Outline (D) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) 300-mil DIPs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

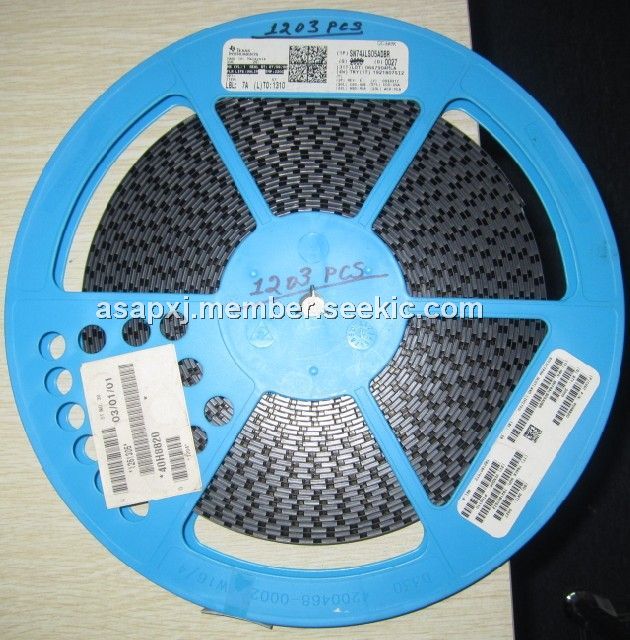

 SN74ALS05ADBR |
Texas Instruments |
Buffers & Line Drivers Hex inverters w/open collector output |
Data Sheet |
Negotiable |
|
||||
|
SN74ALS05ADBRE4 |
|
IC INVERTER HEX 14-SSOP |
Data Sheet |
Negotiable |
|
||||
 |
SN74ALS05ADBRG4 |
Texas Instruments |
Buffers & Line Drivers Hex Inverters |
Data Sheet |
Negotiable |
|
||||
