Product Summary
The SN65HVD3085EDR is a low-power RS-485 transceiver. It is designed for RS-485 data bus networks. Powered by a 5-V supply, the device fully compliants with TIA/EIA-485A standard. With controlled transition times, the SN65HVD3085EDR is suitable for transmitting data over long twisted-pair cables. The device is suitable for data transmission up to 1Mbps. The applications of the SN65HVD3085EDR include: Energy Meter Networks, Motor Control, Power Inverters, Industrial Automation, Building Automation Networks, Battery-Powered Applications, Telecommunications Equipment.
Parametrics
SN65HVD3085EDR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Voltage range at A or B: -9 V to 14 V; (3)Voltage range at any logic pin: -0.3 V to VCC + 0.3 V; (4)Receiver output current: -24 mA to 24 mA; (5)Voltage input range, transient pulse, A and B, through 100 Ω: -50 V to 50 V; (6)Junction temperature, TJ: 170℃.
Features
SN65HVD3085EDR features: (1)Available in Small MSOP-8 Package; (2)Meets or Exceeds the Requirements of the TIA/EIA.485A Standard; (3)Low Quiescent Power: 0.3 mA Active Mode, 1 nA Shutdown Mode; (4)1/8 Unit Load—Up to 256 Nodes on a Bus; (5)Bus-Pin ESD Protection Up to 15 kV; (6)Industry-Standard SN75176 Footprint; (7)Failsafe Receiver(Bus Open, Bus Shorted, Bus Idle); (8)Glitch-Free Power-Up/Down Bus Inputs and Outputs.

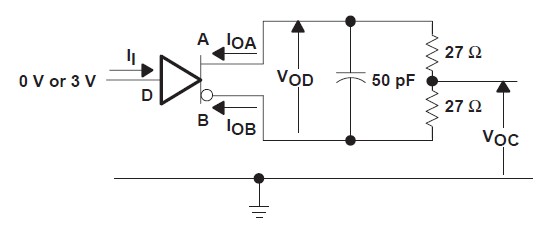

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN65HVD3085EDR |
Texas Instruments |
Buffers & Line Drivers Low-power Half-dplx Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN65HVD3085EDRG4 |
Texas Instruments |
Bus Transceivers Low-power Half-dplx Transceiver |
Data Sheet |
|
|
||||||||||||
