Product Summary
The SN65HVD3082EDR is a half-duplex transceiver designed for RS-485 data bus network. Powered by a 5-V supply, it is fully compliant with TIA/EIA-485A standard. With controlled transition times, the device is suitable for transmitting data over long twisted-pair cables. The SN65HVD3082EDR is optimized for signaling rates up to 200 kbps. The SN65HVD3082EDR is suitable for data transmission up to 1 Mbps, whereas SN65HVD3082EDR is suitable for applications requiring signaling rates up to 20 Mbps. The device is designed to operate with very low supply current, typically 0.3 mA, exclusive of the load. When in the inactive shutdown mode, the supply current drops to a few nanoamps, making the device ideal for power-sensitive applications.
Parametrics
SN65HVD3082EDR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Voltage range at A or B: -9 V to 14 V; (3)Voltage range at any logic pin: -0.3 V to VCC + 0.3 V; (4)Receiver output current: -24 mA to 24 mA; (5)Voltage input range, transient pulse, A and B, through 100 Ω: -50 V to 50 V; (6)Junction temperature, TJ: 170℃; (7)Continuous total power dissipation: Refer to Package Dissipation Table.
Features
SN65HVD3082EDR features: (1)Available in Small MSOP-8 Package; (2)Meets or Exceeds the Requirements of the; (3)TIA/EIA.485A Standard; (4)Low Quiescent ower, 0.3 mA Active Mode, 1 nA Shutdown Mode; (5)1/8 Unit Load—Up to 256 Nodes on a Bus; (6)Bus-Pin ESD Protection Up to 15 kV; (7)Industry-Standard SN75176 Footprint; (8)Failsafe Receiver (Bus Open, Bus Shorted, Bus Idle). SN65HVD3082EDR applications: (1)Energy Meter Networks; (2)Motor Control; (3)Power Inverters; (4)Industrial Automation; (5)Building Automation Networks; (6)Battery-Powered Applications; (7)Telecommunications Equipment.

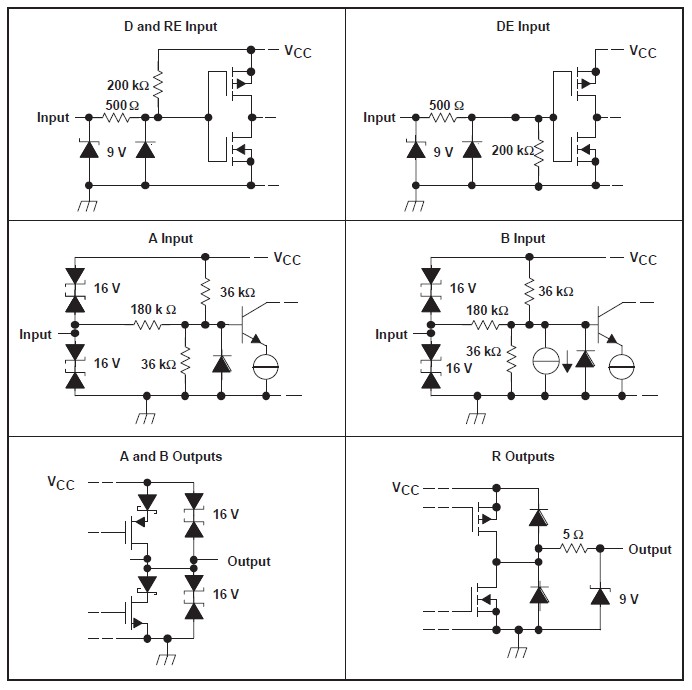

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN65HVD3082EDR |
Texas Instruments |
Buffers & Line Drivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN65HVD3082EDRG4 |
Texas Instruments |
Bus Transceivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
