Product Summary

The SMV1702-999 is a silicon hyperabrupt junction varactor diode specifically designed for battery operation. The specified high capacitance ratio and low RS of these varactors make them appropriate for low noise VCOs used at frequencies in wireless systems. Applications of the SMV1702-999 include low-noise and wideband UHF and VHF VCOs.

Parametrics

SMV1702-999 absolute maximum ratings: (1)Forward current (IF): 20 mA; (2)Power dissipation (PD): 250 mW; (3)Storage temperature (TST): -55 to +150℃; (4)Operating temperature (TOP): -55 to +125℃; (5)ESD human body model: Class 0.

Features

SMV1702-999 features: (1)Designed for high-volume, low-cost battery applications; (2)Low series resistance; (3)High capacitance ratio; (4)Available lead (Pb)-free and RoHS-compliant MSL-1 @ 260℃ per JEDEC J-STD-020; (5)SOD-323 package; (6)Available in tape and reel packaging.

Diagrams

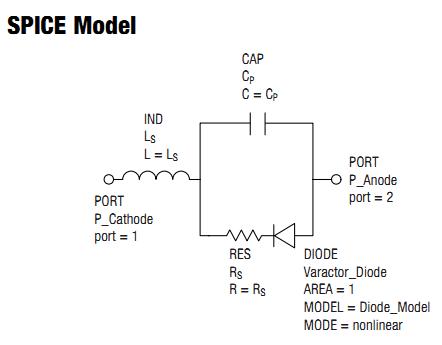

SMV1702-999 block diagram
