Product Summary
The SML-521MUWT is a LED.
Parametrics
SML-521MUWT absolute maximum ratings: (1)peak forward current, IFP: 60mA; (2)reverse voltage, VR: 4V; (3)operating temperature, Topr: -30 to 85℃; (4)storage temperature, Tstg: -40 to 85℃.
Features
SML-521MUWT features: (1)resion color: miky white; (2)forward voltage, VF: 2.2V, 1.9V typ; IF: 20mA; (3)reverse current, IF: 100μA max; VR: 4V; (4)light wavelength, peak, λp: 570nm, 630nm typ; △λp: 40nm, 15nm typ; IF: 20mA; (5)brightness, IV: 5.6mcd, 22mcd min; 16mcd, 63mcd typ; IF: 20mA.

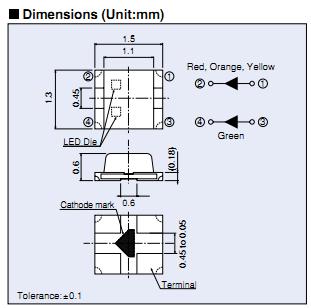

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SML-521MUWT86 |
ROHM Semiconductor |
Standard LED - SMD DUAL GREEN/RED SMD |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
SML-010 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
SML-010DTT86 |
ROHM Semiconductor |
Standard LED - SMD ORANGE LENS SMD 3X2mm |
Data Sheet |
|
|
||||||||||||
|
SML-010FTT86 |
ROHM Semiconductor |
Standard LED - SMD LT GREEN LENS SMD 3X2mm |
Data Sheet |
|
|
||||||||||||
|
SML-010PTT86 |
ROHM Semiconductor |
Standard LED - SMD PURE GRN LENS SMD 3X2mm |
Data Sheet |
|
|
||||||||||||
|
SML-010YTT86 |
ROHM Semiconductor |
Standard LED - SMD YELLOW LENS SMD 3X2mm |
Data Sheet |
|
|
||||||||||||
|
SML-010YTT87 |
ROHM Semiconductor |
Standard LED - SMD "-86" T/R SUFFIX IS PREFERRED |
Data Sheet |
|
|
||||||||||||
