Product Summary
The RN5RG33AA is a voltage regulator IC with an external power transistor with high output voltage accuracy and lowest supply current by CMOS process. The RN5RG33AA consists of a voltage reference unit, an error amplifier and resistors. The device is suitable for constructing regulators with ultra-low dropout voltage and an output current in the range of several tens mA to several hundreds mA. Furthermore,the RN5RG33AA has a chip enable function, so that the supply current on standby can be minimized. Since the package for the device is SOT-23-5 (Mini-mold) package, high density mounting of the IC on boards is possible.
Parametrics
RN5RG33AA absolute maximum ratings: (1)VIN, Input Voltage: 12V; (2)VCE, Input Voltage (CE Pin): -0.3 to VIN+0.3V; (3)VEXT, EXT Output Voltage: 12V; (4)IEXT, EXT Output Current: 50mA; (5)PD, Power Dissipation: 150mW; (6)Topt, Operating Temperature Range: -40 to 85℃; (7)Tstg, Storage Temperature Range: -55 to 125℃; (8)Tsolder, Lead Temperature (Soldering): 260℃, 10s.
Features
RN5RG33AA features: (1)Ultra-Low Supply Current: TYP. 50μA; (2)Standby Mode: TYP. 0.2μA; (3)Ultra-Low Dropout Voltage: TYP. 0.1V (IOUT=100mA: dependent on External Tr.); (4)Low Temperature-Drift Coefficient of Output Voltage: TYP. ±100 ppm/℃; (5)Excellent Line Regulation: TYP. 0.1%/V; (6)Output Voltage: Stepwise setting with a step of 0.1V in the range of 2.0V to 6.0V is possible (refer to Selection Guide); (7)High Accuracy Output Voltage: ±2.5%; (8)Small Package: SOT-23-5(Mini-Mold).

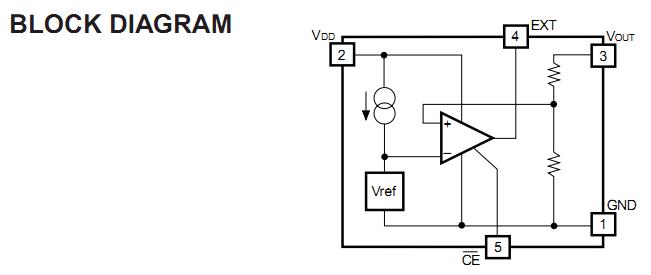

Diagrams
 |
