PTL1608-F15NT

photolithographically etched, single layer, ceramic chip inductor, SMD, 800mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: PTL1608-F15NT

Brand:: TOKO, Inc - TOKO | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-01

From Other Seller

Part Number:PTL1608-F15NT
US $0.00 - 5.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

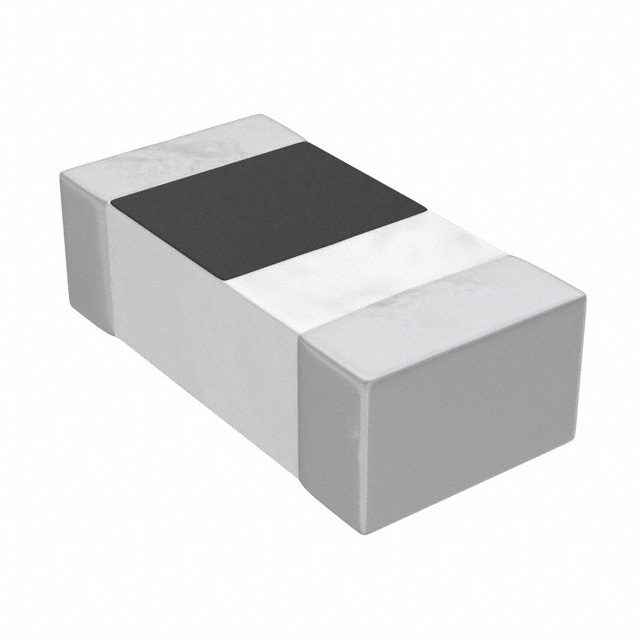

The PTL1608-F15NT is a photolithographically etched single layer ceramic chip inductor in a standard 0603 footprint. TOKO’s proprietary design provides high SRF, excellent Q, and superior temperature stability. This highly stable inductor PTL1608-F15NT is specifically designed for critical tolerance inductor needs. More economical than thin film or screened wirewounds, the PTL1608-F15NT is an ideal solution for tight tolerance requirements, such as VCO circuits and GaAs matching.

Parametrics

PTL1608-F15NT absolute maximum ratings: (1)inductance & tolerance, LO: 1.5nH at 100MHz; 1.4nH at 800MHz; (2)A: 6 min at 100MHz; 20 min at 800MHz; (3)Q (typ): 7.4 at 100MHz; 7.4 at 300MHz; 19.0 at 500MHz; 24.6 at 800MHz; 28.1 at 800MHz; 37.0 at 1800MHz; (4)SRF: 10000±10% MHz; (5)RDC: 0.15Ω max; (6)IDC: 800mA max.

Features

PTL1608-F15NT features: (1)±0.2nH and ±2% inductance tolerance; (2)Inductance range: 1.0-18nH; (3)Miniature size: 0603 footprint (1.6mm x 0.8mm); (4)Inductance and Q specified at 100MHz and 800MHz; (5)Self-resonant frequency specified at ±10%; (6)Q: 35 ~ 48 typical (at 1800MHz); (7)Temperature coefficient of inductance: +100ppm/℃; (8)Temperature range: –40 to +100℃; (9)S-parameter data available upon request; (10)Packaged on tape and reel in 6,000 piece quantity; (11)Reflow solderable.
