Product Summary
The PS2705-1-F3-A is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. This package is SOP (Small Outline Package) type and has shield effect to cut off ambient light. The PS2705-1-F3-A is designed for high density mounting applications. The applications of PS2705-1-F3-A are: (1)Hybrid IC; (2)Telephone/FAX; (3)FA/OA equipment; (4)Programmable logic controllers; (5)Power supply.
Parametrics
PS2705-1-F3-A absolute maximum ratings: (1)Diode Forward Current (DC) IF: ± 50 mA; (2)Power Dissipation Derating: 0.8 mW/℃; (3)Power Dissipation PD: 80 mW/ch; (4)Peak Forward Current: ± 1 A; (5)Transistor Collector to Emitter Voltage VCEO: 40 V; (6)Emitter to Collector Voltage VECO: 6 V; (7)Collector Current IC: 80 mA/ch; (8)Power Dissipation Derating △PC/℃: 1.5mW/℃; (9)Power Dissipation PC: 150 mW/ch; (10)Isolation Voltage: 3 750 Vr.m.s.; (11)Operating Ambient Temperature: –55 to +100 ℃; (12)Storage Temperature Tstg: –55 to +150 ℃.
Features
PS2705-1-F3-A features: (1)AC input response; (2)High isolation voltage (BV = 3 750 Vr.m.s.); (3)High current transfer ratio (CTR = 100 % TYP.); (4)SOP (Small Outline Package) type; (5)High-speed switching (tr = 3 ms TYP., tf = 5 ms TYP.); (6)Ordering number of taping product (Only-1 type); (7)UL approved: File No. E72422 (S); (8)VDE0884 approved (Option).

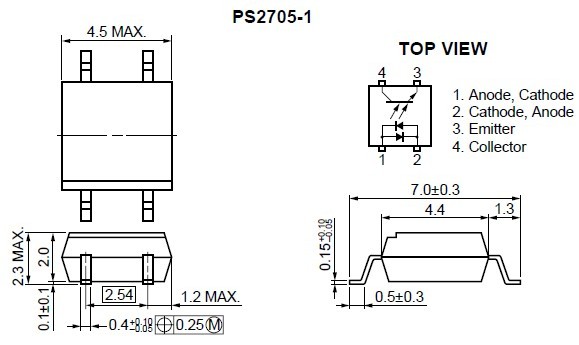

Diagrams
