PL-2303HX

Product Summary

The PL-2303HX is a convenient solution for connecting an RS232-like full-duplex asynchronous serial device to any Universal Serial Bus (USB) capable host. PL-2303HX highly compatible drivers could simulate the traditional COM port on most operating systems allowing the existing applications based on COM port to easily migrate and be made USB ready.

Parametrics

PL-2303HX absolute maximum ratings: (1)Power Supply Voltage: -0.3 to 5.5 V; (2)Input Voltage of 3.3V I/O: -0.3 to VO_33 + 0.3 V; (3)Input Voltage of 3.3V I/O with 5V Tolerance I/O: -0.3 to VDD_5 + 0.3V; (4)Output Voltage of 3.3V I/O: -0.3 to VO_33 + 0.3 V; (5)Storage Temperature: -40 to 150℃.

Features

PL-2303HX features: (1)Fully Compliant with USB Specification v2.0 (Full-Speed); (2)On Chip USB 1.1 transceiver, 5V 3.3V regulator, and 12 MHz crystal oscillator; (3)Supports RS232-like Serial Interface; Full-duplex transmitter and receiver (TXD and RXD); Six MODEM control pins (RTS, CTS, DTR, DSR, DCD, and RI); 5, 6, 7 or 8 data bits; Odd, Even, Mark, Space, or None parity mode; One, one and a half, or two stop bits; Parity error, frame error, and serial break detection; Programmable baud rate from 75 bps to 6 Mbps; External RS232 driver power down control; Independent power source for serial interface; (4)Extensive Flow Control Mechanism; Adjustable high/low watermark level; Automatic flow control with CTS/RTS; Automatic flow control with XON/XOFF; Inbound data buffer overflow detection Configurable 512-byte bi-directional data buffer; 256-byte outbound buffer and 256-byte inbound buffer or 128-byte outbound buffer and 384-byte inbound buffer; (5)Supports remote wake-up from MODEM input signals; (6)Two general purpose I/O (GPIO) pins; (7)Optional external EEPROM for startup device configurations ; (8)Provides drivers support for Windows, Mac OS, Linux, and WinCE; (9)Designed for Windows XP Certified Logo Drivers; (10)USB-IF Logo Compliant with TID 40002448; (11)Small footprint 28-pin SSOP IC package.

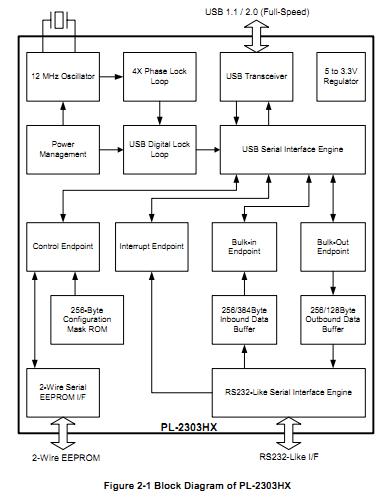

Diagrams
