Product Summary

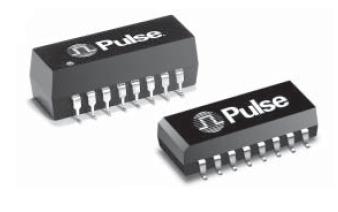

The PE-68515 is a 10/100BASE-T Transformer Module with PoE Option and 1:1 Turns Ratios.

Parametrics

PE-68515 absolute maximum ratings: Insertion Loss (dB MAX): 0.1-100 MHz: -1.0; (4)Return Loss (dB MIN @ 100 Ω): 1-30 MHz: -18; 40 MHz: -16; 50 MHz: -16; (5)Hipot (Vrms MIN): 1500.

Features

PE-68515 features: (1)RoHS peak reflow temperature rating: 245℃; (2)Compatible with Broadcom, Intel, Micrel, National Semiconductor, ICS, and TDK Transceivers; (3)Meets IEEE 802.3 specification.

Diagrams

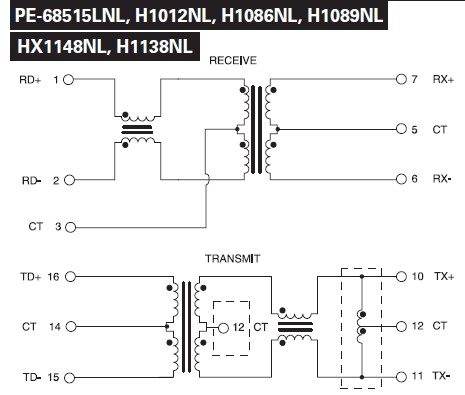

PE-68515 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PE-68515
PE-68515
Pulse
Transformers Audio & Signal 10/100 BASE-T SINGLE
Data Sheet
0-1: $6.00
1-10: $4.54
10-100: $4.12
100-500: $3.74
PE-68515L
PE-68515L
Pulse
Transformers Audio & Signal MOD (SGL 1:1)
Data Sheet
0-1: $3.80
1-25: $3.07
25-100: $2.45
100-500: $2.25
PE-68515LNL
PE-68515LNL
Pulse
Transformers Audio & Signal MODULE (Single 1:1)
Data Sheet
0-1: $2.49
1-10: $2.23
10-100: $1.69
100-500: $1.39
PE-68515LNLT
PE-68515LNLT
Pulse
Transformers Audio & Signal MODULE (Single 1:1)
Data Sheet
0-1: $2.49
1-10: $2.23
10-100: $1.69
100-160: $1.69
PE-68515LT
PE-68515LT
Pulse
Transformers Audio & Signal MOD (SGL 1:1)
Data Sheet
0-160: $2.45
160-500: $2.25
500-1000: $2.11
1000-2000: $1.97
PE-68515T
PE-68515T
Pulse
Transformers Audio & Signal MODULE
Data Sheet
0-117: $4.12
117-500: $3.74
500-1000: $3.37
