Product Summary
The PCM2901E/2K is a single-chip USB stereo audio codec. The USB protocol controller works with no software code, but the USB descriptors can be modified in some areas (for example, vendor ID/product ID). The PCM2901E/2K employs SpAct architecture, TI’s unique system that recovers the audio clock from USB packet data. On-chip analog PLLs with SpAct enable playback and record with low clock jitter and with independent playback and record sampling rates. The applications of the PCM2901E/2K include: USB Audio Speaker, USB Headset, USB Monitor, USB Audio Interface Box.
Parametrics
PCM2901E/2K absolute maximum ratings: (1)Supply voltage, VCCC, VCCP1, VCCP2, VCCX, VDD: –0.3 to 4 V; (2)Supply voltage differences, VCCC, VCCP1, VCCP2, VCCX, VDD: ±0.1 V; (3)Ground voltage differences, AGNDC, AGNDP, AGNDX, DGND, DGNDU: ±0.1 V; (4)Analog input voltage VINL, VINR, VCOM, VOUTR, VOUTL: -0.3 to (VCCC + 0.3) < 4 V; (5)Input current (any pins except supplies): ±10 mA; (6)Ambient temperature under bias: -40 to 125 ℃; (7)Storage temperature, Tstg: -55 to 150 ℃; (8)Junction temperature TJ: 150 ℃; (9)Lead temperature (soldering): 260 ℃, 5 s; (10)Package temperature (IR reflow, peak): 250 ℃.
Features
PCM2901E/2K features: (1)Without S/PDIF; (2)16-Bit Delta Sigma ADC and DAC; (3)On-Chip Clock Generator: With Single 12-MHz Clock Source; (4)Single Power Supply: 3.3 V TYP; (5)Stereo ADC; (6)Package: 28-Pin SSOP.

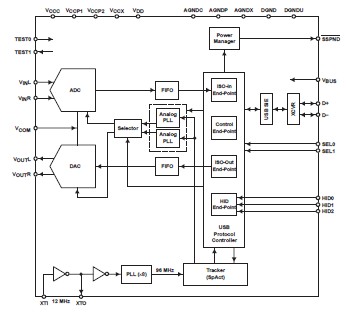

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PCM2901E/2K |
Texas Instruments |
Audio CODECs Ster Codec w/USB Ifc & Sngl-end I/O |
Data Sheet |
|
|
||||||||
|
PCM2901E/2KG4 |
Texas Instruments |
Audio CODECs Ster Codec w/USB Ifc & Sngl-end I/O |
Data Sheet |
|
|
||||||||
