Product Summary

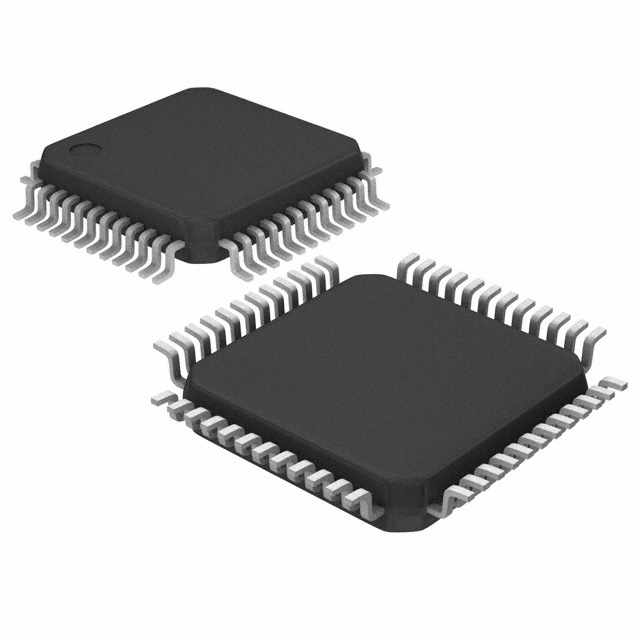

The PCM1602Y is a CMOS monolithic integrated circuit that features six 24-bit audio Digital-to-Analog Converters (DACs) and support circuitry in a small LQFP-48 package. The DACs utilize Texas Instrument’s enhanced multilevel, delta-sigma architecture that employs fourthorder noise shaping and 8-level amplitude quantization to achieve excellent signal-to-noise performance and a high tolerance to clock jitter. The applications of the PCM1602Y are (1)integrated A/V receivers; (2)DVD movie and audio players; (3)hdtv receivers; (4)car audio systems; (5)DVD add-on cards for high-end pcs; (6)digital audio workstations; (7)other multichannel audio systems.

Parametrics

PCM1602Y absolute maximum ratings: (1)Power Supply Voltage, VDD: +4.0V; (2)VCC: +6.5V; (3)Ground Voltage Differences: ±0.1V; (4)Digital Input Voltage: –0.3V to (6.5V + 0.3V); (5)Input Current (except power supply): ±10mA; (6)Operating Temperature Under Bias:–40 to +125℃; (7)Storage Temperature: –55 to +150℃; (8)Junction Temperature: +150℃; (9)Lead Temperature (soldering, 5s): +260℃; (10)Package Temperature (IR reflow, 10s): +235℃.

Features

PCM1602Y features: (1)sampling frequency: 5kHz to 200kHz (Channels 1 and 2); 5kHz to 100kHz (Channels 3, 4, 5, and 6); (2)accepts 16-, 18-, 20-, and 24-bit audio data; (3)data formats: standard, i2s, and left-justified; (4)system clock: 128, 192, 256, 384, 512, or 768fs.

Diagrams

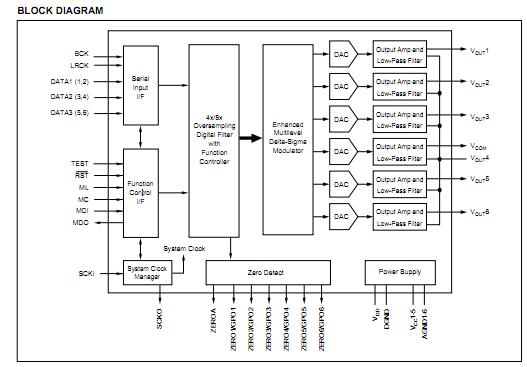

PCM1602Y circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PCM1602Y
PCM1602Y
Texas Instruments
Audio D/A Converter ICs 24Bit/192kHz Smplg 6Ch Enh Mltl D-S DAC
Data Sheet
0-148: $5.03
148-250: $4.11
250-500: $3.94
500-1000: $3.89
PCM1602Y/2K
PCM1602Y/2K
Texas Instruments
Audio D/A Converter ICs 24Bit/192kHz Smplg 6Ch Enh Mltl D-S DAC
Data Sheet
0-1505: $3.56
1505-2000: $3.43
PCM1602Y/2KG4
PCM1602Y/2KG4
Texas Instruments
Audio D/A Converter ICs 6CH AUDIO DAC
Data Sheet
0-1505: $3.56
1505-2000: $3.43
PCM1602YG4
PCM1602YG4
Texas Instruments
Audio D/A Converter ICs 6CH AUDIO DAC
Data Sheet
0-163: $4.56
163-250: $4.11
250-500: $3.74
500-1000: $3.68
