Product Summary

The NOJD157M006R is a capacitor.

Parametrics

NOJD157M006R specifications: (1)Capacitance Range: 2.2 μF to 470 μF; (2)Capacitance Tolerance: ±20%; (3)Leakage Current DCL: 0.02CV; (4)Rated Voltage DC (VR) ≦ +85℃: 1.8; (5)Category Voltage (VC) ≦ +105℃: 1.2; (6)Surge Voltage (VS) ≦ +85℃: 2.3; (7)Surge Voltage (VS) ≦ +105℃: 1.6; (8)Temperature Range: -55 to +105℃; (9)Reliability: 0.5% per 1000 hours at 85℃, VR, 0.1Ω/V series impedance, 60% confidence level.

Features

NOJD157M006R features: (1)Non-burn safe technology; (2)Reliability level: 0.5%/1000 hrs; (3)CV range: 2.2-470μF / 1.8-10V; (4)7 case sizes in low profile available; (5)IBM global approval received in 2004; (6)Electra Award received in 2005.

Diagrams

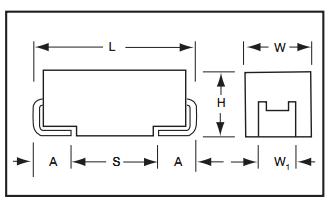

NOJD157M006R dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NOJD157M006RWJ
NOJD157M006RWJ
AVX
Niobium Oxide Capacitors 6V 150uF 20%
Data Sheet
0-1: $0.75
1-50: $0.65
50-100: $0.57
100-500: $0.28
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NOJD107M006SWJ
NOJD107M006SWJ
AVX
Niobium Oxide Capacitors 6.3volts 100uF 20%
Data Sheet
0-960: $0.54
960-1000: $0.50
1000-2000: $0.38
2000-5000: $0.32
NOJD107M010RWJ
NOJD107M010RWJ
AVX
Niobium Oxide Capacitors 10V 100uF 20%
Data Sheet
0-1: $1.09
1-50: $0.89
50-100: $0.76
100-500: $0.70
NOJD157M006RWJ
NOJD157M006RWJ
AVX
Niobium Oxide Capacitors 6V 150uF 20%
Data Sheet
0-1: $0.75
1-50: $0.65
50-100: $0.57
100-500: $0.28
NOJD227M006SWJ
NOJD227M006SWJ
AVX
Niobium Oxide Capacitors 6.3volts 220uF 20%
Data Sheet
0-960: $0.58
960-1000: $0.54
1000-2000: $0.41
2000-5000: $0.35
NOJD337M002RWJ
NOJD337M002RWJ
AVX
Niobium Oxide Capacitors 2.5v 330uF 20% Tol.
Data Sheet
0-1: $4.98
1-50: $4.35
50-100: $2.73
100-500: $1.66
NOJD337M006RWJ
NOJD337M006RWJ
AVX
Niobium Oxide Capacitors 6.3V 330uF 20%
Data Sheet
0-1: $4.98
1-50: $4.35
50-100: $2.73
100-500: $1.66
