Product Summary
The NJM2904D is a single-supply dual operational amplifier. The NJM2904D consists of two independent, high gain, internally frequency compensated operation amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. Applications areas of the NJM2904D include transducer amplifiers, DC gain blocks, and all the conventional opamp circuits which now can be more easily implemented in single power supply systems.
Parametrics
NJM2904D absolute maximum ratings: (1)Supply voltage V: 32(or ±16)V; (2)Differential input voltage VID: 32V; (3)Input voltage VIC: -0.3 to 32 V; (4)Power dissiaption PD: 500mW; (5)Operating temperature range Topr: -40 to 85 ℃; (6)Storage temperature range Tstg: -50 to 125 ℃.
Features
NJM2904D features: (1)Single supply; (2)Operating voltage: 3V to 32V; (3)Low operating current: 0.7mA typ; (4)Slew rate: 0.5V/μs typ; (5)Bipolar technology; (6)Package outline: DIP8, DMP8, SIP8, SSOP8.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2904D |
NJR |
Operational Amplifiers - Op Amps Sinlge Supply Dual |
Data Sheet |
|
|
||||||||||||
 |
NJM2904D# |
NJR |

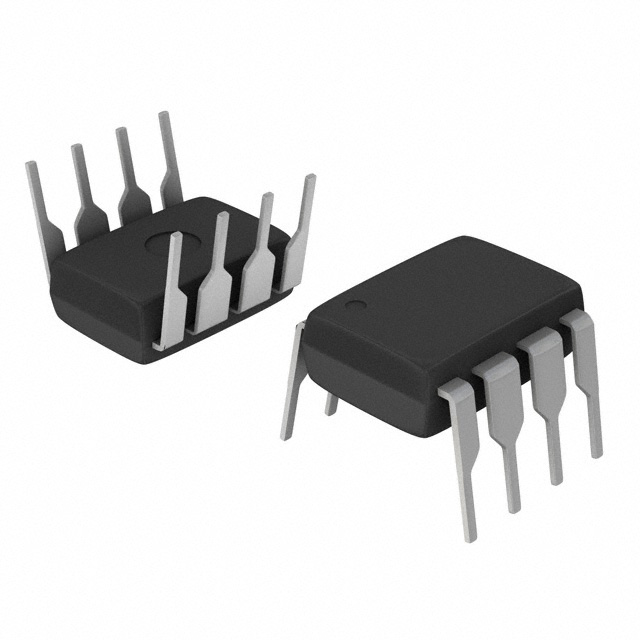

IC OPAMP DUAL SNGL-SUPPLY 8-DIP |
Data Sheet |
|
|
||||||||||||
