Product Summary

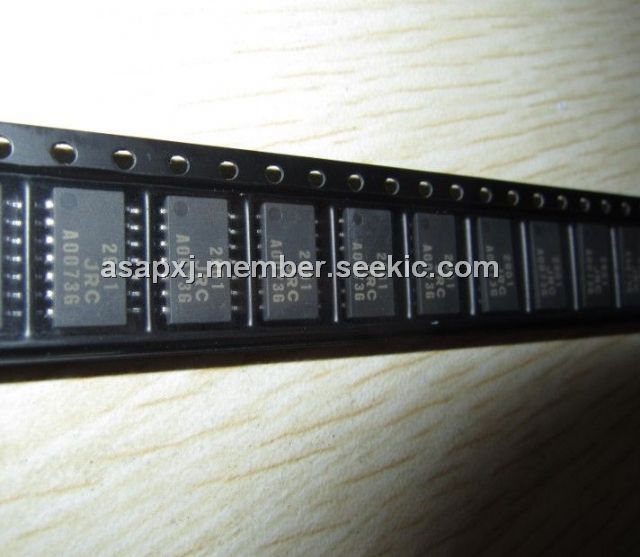

The NJM2901M is a single-supply quad comparator. It offers higher frequency operation and faster switching than can be had from internally compensated quad opamps. Indeed for single-supply applications, the darington PNP input stage allows the NJM2901M to compare voltages that include ground. The output collector of the NJM2901M is left open, permitting the designer to drive devices in the range of 2V to 36V.
Parametrics
NJM2901M absolute maximum ratings: (1)Supply voltage V: 36(or ±18)V; (2)Differential input voltage VID: 36V; (3)Input voltage VIN: -0.3 to 36 V; (4)Power dissiaption PD: 570mW; (5)Operating temperature range Topr: -40 to 85 ℃; (6)Storage temperature range Tstg: -50 to 125 ℃.
Features
NJM2901M features: (1)Operating voltage: 2V to 36V; (2)Single supply operation; (3)Open collector output; (4)Package outline: DIP14, DMP14, SSOP14; (5)Bipolar technology.

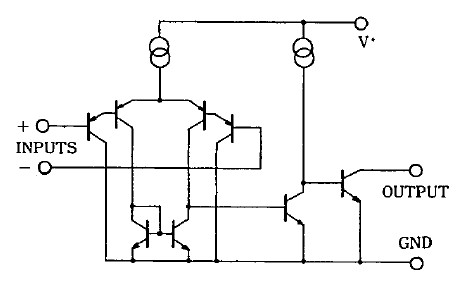

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM2901M |
NJR |
Comparator ICs Quad Single Supply |
Data Sheet |
|
|
||||||||||||
 |
NJM2901M-T2 |
NJR |
Comparator ICs Quad Single Supply |
Data Sheet |
Negotiable |
|
||||||||||||
|
NJM2901M-TE1 |
NJR |
Comparator ICs Quad Single Supply |
Data Sheet |
|
|
||||||||||||
|
NJM2901M-TE2 |
NJR |
Comparator ICs Quad Single Supply |
Data Sheet |
|
|
||||||||||||
|
NJM2901M-T1 |
NJR |
Comparator ICs Quad Single Supply |
Data Sheet |
Negotiable |
|
||||||||||||
