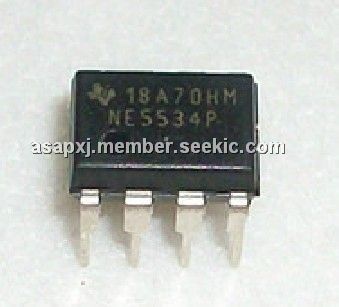

NE5534

dual and single, high-performance, low noise, operational amplifier, DIP, ±22 V, 10MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: NE5534

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-02

From Other Seller

Part Number:NE5534
US $0.00 - 5.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

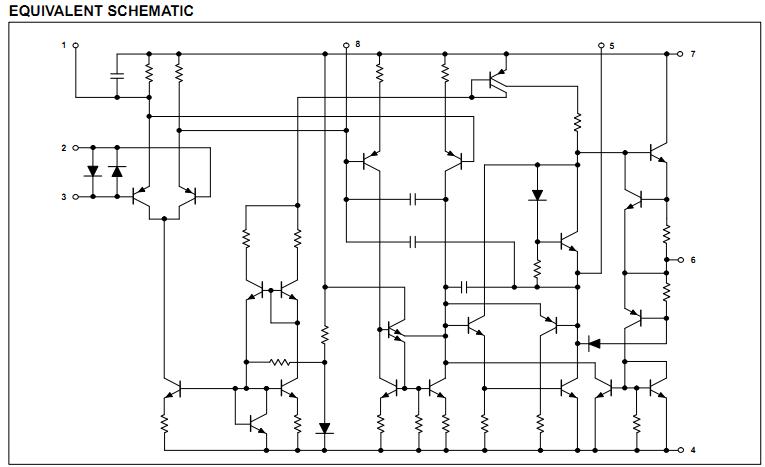

Product Summary

The NE5534 is a dual and single high-performance low noise operational amplifier. Compared to other operational amplifiers, such as TL083, the NE5534 shows better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths. The applications of the NE5534 include Audio equipment, Instrumentation and control circuits, Telephone channel amplifiers and Medical equipment.

Parametrics

NE5534 absolute maximum ratings: (1)VS, Supply voltage: ±22 V; (2)VIN, Input voltage: ±V supply; (3)VDIFF, Differential input voltage: ±0.5 V; (4)TA, Operating temperature range: -55 to +125℃; (5)TSTG, Storage temperature range: -65 to +150℃; (6)TJ, Junction temperature: 150℃; (7)PD, Power dissipation: 1350 mW; (8)TSOLD, Lead soldering temperature (10sec max): 300℃.

Features

NE5534 features: (1)Small-signal bandwidth: 10MHz; (2)Output drive capability: 600Ω, 10VRMS at VS=±18V; (3)Input noise voltage: 4nV Hz; (4)DC voltage gain: 100000; (5)AC voltage gain: 6000 at 10kHz; (6)Power bandwidth: 200kHz; (7)Slew rate: 13V/μs; (8)Large supply voltage range: ±3 to ±20V.
