Product Summary

The MPC8544VTANG is an Integrated Processor.

Parametrics

MPC8544VTANG absolute maximum ratings: (1)Core supply voltage VDD: -0.3 to 1.1 V; (2)PLL supply voltage AVDD: -0.3 to 1.1 V; (3)Core power supply for SerDes transceivers SVDD: -0.3 to 1.1 V; (4)Pad power supply for SerDes transceivers XVDD: -0.3 to 1.1 V; (5)Storage temperature range TSTG: -55 to 150 ℃.

Features

MPC8544VTANG features: (1)Double-precision floating-point APU. Provides an instruction set for double-precision (64-bit)floating-point instructions that use the 64-bit GPRs; (2)36-bit real addressing; (3)Embedded vector and scalar single-precision floating-point APUs. Provide an instruction set for single-precision (32-bit)floating-point instructions; (4)Memory management unit (MMU). Especially designed for embedded applications. Supports 4-Kbyte–4-Gbyte page sizes; (5)Enhanced hardware and software debug support; (6)Performance monitor facility that is similar to, but separate from, the device performance monitor.

Diagrams

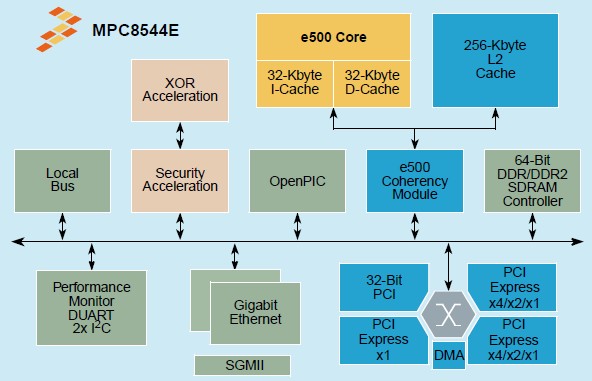

MPC8544VTANG pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MPC8544VTANG
MPC8544VTANG

Freescale Semiconductor

Microprocessors (MPU) PQ38K 8544

Data Sheet

0-1: $70.97
1-25: $67.63
25-100: $61.56
MPC8544VTANGA
MPC8544VTANGA

Freescale Semiconductor

Digital Signal Processors & Controllers (DSP, DSC) PQ38K 8544

Data Sheet

0-15: $86.71
15-25: $81.80
25-100: $51.13
