Product Summary

The MPC8247VRTIEA is an integrated communications processor. The MPC8247VRTIEA contains detailed information on power considerations, DC/AC electrical characteristics, and AC timing specification. The MPC8247VRTIEA.13μm (HiP7) member of the PowerQUICC II family of integrated communications processors. The MPC8247VRTIEA includes on a single chip a 32-bit PowerPC core that incorporates memory management units (MMUs) and instruction and data caches and that implements the PowerPC instruction set; a modified communications processor module (CPM); and an integrated security engine (SEC) for encryption.

Parametrics

MPC8247VRTIEA absolute maximum ratings: (1)Core supply voltage VDD: -0.3 to 2.25 V; (2)PLL supply voltage VCCSYN: -0.3 to 2.25 V; (3)I/O supply voltage VDDH: -0.3 to 4.0 V; (4)Input voltage VIN GND: (-0.3)to 3.6 V; (5)Junction temperature Tj: 120 °C; (6)Storage temperature range T STG: (-55)to (+150)°C; (7)Input leakage current, V IN = VDDH I IN: 10 μA.


Features

MPC8247VRTIEA features: (1)G2_LE core and CPM can run at different frequencies for power/performance optimization; (2)Bus supports multiple master designs—up to two external masters; (3)Supports single transfers and burst transfers; (4)64-, 32-, 16-, and 8-bit port sizes controlled by on-chip memory controller; (5)Programmable host bridge and agent; (6)32-bit data bus, 66 MHz, 3.3 V; (7)Synchronous and asynchronous 60x and PCI clock modes; (8)All internal address space available to external PCI host; (9)DMA for memory block transfers; (10)PCI-to-60x address remapping; (11)Clock synthesizer; (12)Reset controller; (13)Real-time clock (RTC)register; (14)Periodic interrupt timer; (15)Glueless interface to SRAM, page mode SDRAM, DRAM, EPROM, Flash, and other user-definable peripherals; (16)Byte write enables; (17)32-bit address decodes with programmable bank size; (18)Three user programmable machines, general-purpose chip-select machine, and page mode pipeline SDRAM machine; (19)Byte selects for 64-bit bus width (60x); (20)Dedicated interface logic for SDRAM.

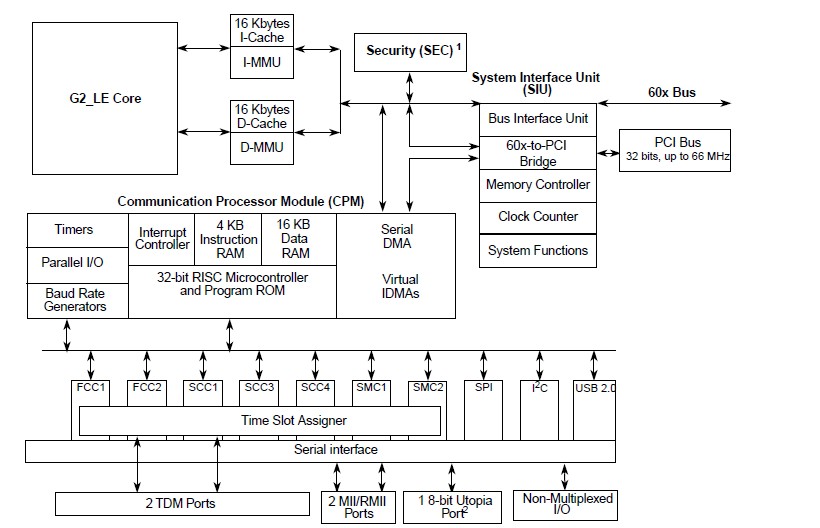

Diagrams

MPC8247VRTIEA pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MPC8247VRTIEA
MPC8247VRTIEA

Freescale Semiconductor

Microprocessors (MPU) 400 MHz 760 MIPS

Data Sheet

0-1: $29.22
1-25: $27.60
25-50: $22.59
50-100: $18.30
