Product Summary
The MM74HCT374WM is an Octal D-type flip flop. It provides the inherent benefits of low power consumption and wide power supply range, but are LS-TTL input and output characteristic & pin-out compatible. The MM74HCT374WM is capable of driving 15 LS-TTL loads. All inputs are protected from damage due to static discharge by internal diodes to VCC and ground. The MM74HCT374WM is a positive edge triggered flip-flop. Data at the D inputs, meeting the setup and hold time requirements, are transferred to the Q outputs on positive going transitions of the CLOCK (CK) input.
Parametrics
MM74HCT374WM absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±35 mA; (6)DC VCC or GND Current, per pin (ICC): ±70 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600 mW, S.O. Package only 500 mW; (9)Lead Temperature (TL)(Soldering 10 seconds): 260℃.
Features
MM74HCT374WM features: (1)TTL input characteristic compatible; (2)Typical propagation delay: 20 ns; (3)Low input current: 1 μA maximum; (4)Low quiescent current: 80 μA maximum; (5)Compatible with bus-oriented systems; (6)Output drive capability: 15 LS-TTL loads.

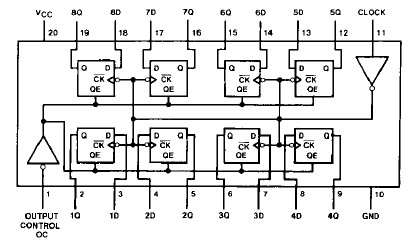

Diagrams
