Product Summary

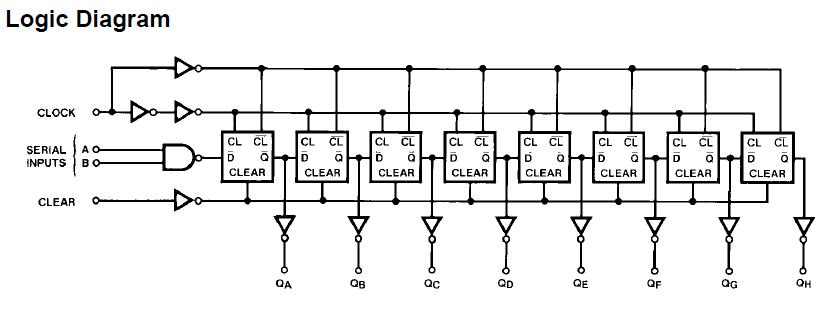

The MM74HC164MX 8-Bit Serial-in/Parallel-out Shift Register utilizes advanced silicon-gate CMOS technology. It has the high noise immunity and low consumption of standard CMOS integrated circuits. The MM74HC164MX also offers speeds comparable to low power Schottky devices. This 8-bit shift register has gated serial inputs and CLEAR. Each register bit is a D-type master/slave flip-flop. Inputs A & B permit complete control over the incoming data. A LOW at either or both inputs inhibits entry of new data and resets the first flip-flop to the low level at the next clock pulse. A high level on one input of MM74HC164MX enables the other input which will then determine the state of the first flip-flop.

Parametrics

MM74HC164MX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃; (8)Power Dissipation (PD): 600 mW; (9)S.O. Package only: 500 mW; (10)Lead Temperature (TL) (Soldering 10 seconds): 260℃.

Features

MM74HC164MX features: (1)Typical operating frequency: 50 MHz; (2)Typical propagation delay: 19 ns (clock to Q); (3)Wide operating supply voltage range: 2V to 6V; (4)Low input current: 1 μA maximum; (5)Low quiescent supply current: 80 μA maximum (74HC Series); (6)Fanout of 10 LS-TTL loads.
