Product Summary
The MM74C00N is a Quad 2-Input NAND Gate, Quad 2-Input NOR Gate, Hex Inverter. The MM74C00N employs complementary MOS (CMOS) to achieve wide power supply operating range, low power consumption, high noise immunity and symmetric controlled rise and fall times. With features such as this the 74C logic family is close to ideal for use in digital systems. Function and pin out compatibility with series 74 devices minimizes design time for those designers already familiar with the standard 74 logic family.
Parametrics
MM74C00N absolute maximum ratings: (1)Voltage at Any Pin: -0.3V to VCC + 0.3V; (2)Operating Temperature Range: -40℃ to +85℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Operating VCC Range: 3.0V to 15V; (5)Maximum VCC Voltage: 18V; (6)Power Dissipation (PD), Dual-In-Line: 700 mW; Small Outline: 500 mW; (7)Lead Temperature (Soldering, 10 seconds): 300℃.
Features
MM74C00N features: (1)Wide supply voltage range: 3V to 15V; (2)Guaranteed noise margin: 1V; (3)High noise immunity: 0.45 VCC (typ.); (4)Low power consumption: 10 nW/package (typ.); (5)Low power: TTL compatibility: Fan out of 2 driving 74L.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74C00N |
|

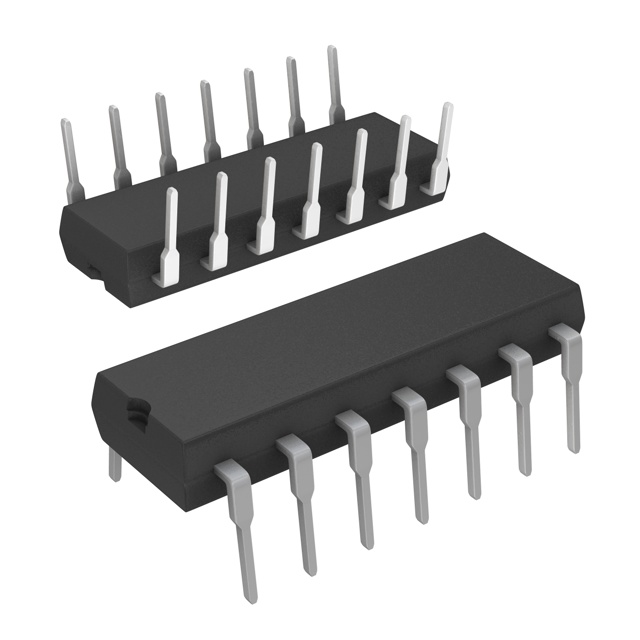

IC GATE NAND QUAD 2 INPUT 14-DIP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
MM74C00 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
MM74C00M |
|
IC GATE NAND QUAD 2-INPUT 14SOIC |
Data Sheet |
Negotiable |
|
||||
|
MM74C00MX |
|
IC GATE NAND QUAD 2-INPUT 14SOIC |
Data Sheet |
Negotiable |
|
||||
|
MM74C00N |
|
IC GATE NAND QUAD 2 INPUT 14-DIP |
Data Sheet |
Negotiable |
|
||||
|
MM74C02 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
MM74C02N |
|
IC GATE NOR QUAD 2 INPUT 14-DIP |
Data Sheet |
Negotiable |
|
||||
