Product Summary

The MIC5236YM is a low quiescent current, μCap low-dropout regulator. With a maximum operating input voltage of 30V and a quiescent current of 20μA, it is ideal for supplying keep-alive power in systems with high-voltage batteries. The MIC5236YM includes a logic compatible enable input and an undervoltage error flag indicator. The applications of the MIC5236YM include: Keep-alive supply in notebook and portable personal computers, Logic supply from high-voltage batteries, Automotive electronics, Battery-powered systems.

Parametrics

MIC5236YM absolute maximum ratings: (1)Supply Voltage (VIN): –20V to +60V; (2)Power Dissipation (PD): Internally Limited; (3)Junction Temperature (TJ): +150℃; (4)Storage Temperature (TS): –65℃ to +150℃; (5)Lead Temperature (soldering, 5 sec.): 260℃.

Features

MIC5236YM features: (1)Ultra-low quiescent current (IQ = 20μA @IO = 100μA); (2)Wide input range: 2.3V to 30V; (3)Low dropout: 230mV @50mA; 300mV @150mA; (4)Fixed 2.5V, 3.0V, 3.3V, 5.0V, and Adjustable outputs; (5)±1.0% initial output accuracy; (6)Stable with ceramic or tantalum output capacitor; (7)Load dump protection: ?0V to +60V input transient survivability; (8)Logic compatible enable input; (9)Low output flag indicator; (10)Overcurrent protection; (11)Thermal shutdown; (12)Reverse-leakage protection; (13)Reverse-battery protection; (14)High-power SOIC-8 and MSOP-8.

Diagrams

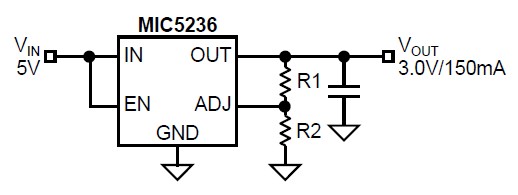

MIC5236YM diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MIC5236YM
MIC5236YM

IC REG LDO ADJ .15A 8SOIC
Data Sheet
0-1: $1.07
1-25: $0.85
25-100: $0.64
100-250: $0.60
250-500: $0.58
MIC5236YM TR
MIC5236YM TR

IC REG LDO ADJ .15A 8-SOIC
Data Sheet
0-2500: $0.55
MIC5236YMM TR
MIC5236YMM TR

IC REG LDO ADJ .15A 8-MSOP
Data Sheet
0-2500: $0.61
MIC5236YMM
MIC5236YMM

IC REG LDO ADJ .15A 8-MSOP
Data Sheet
0-1: $1.20
1-25: $0.96
25-100: $0.72
100-250: $0.67
250-500: $0.65
