Product Summary
The MCP130T-315I/TT is a voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. Both devices are available with a choice of seven different trip voltages and both have open drain outputs. The MCP130T-315I/TT has an internal 5 kΩ pullup resistor. Both devices have active low RESET pins. The MCP130T-315I/TT will assert the RESET signal whenever the voltage on the V DD pin is below the trip-point voltage.
Parametrics
MCP130T-315I/TT absolute maximum ratings: (1)VDD: 7.0V; (2)All inputs and outputs w.r.t. V SS: -0.6V to V DD +1.0V; (3)Storage temperature: -65 to +150℃; (4)Ambient temp. with power applied: -65 to +125℃; (5)ESD protection on all pins: ≥ 2 kV.
Features
MCP130T-315I/TT features: (1)Holds microcontroller in reset until supply voltage reaches stable operating level; (2)Resets microcontroller during power loss; (3)Precision monitoring of 3V, 3.3V and 5V systems; (4)7 voltage trip points available; (5)Active low RESET pin; (6)Open drain output ; (7)Internal pull-up resistor (5 kΩ ) for MCP130; (8)Holds RESET for 350 ms (typical); (9)RESET to VCC = 1.0V; (10)Accuracy of ±125 mV for 5V systems and ±75 mV for 3V systems over temperature; (11)45 μA typical operating current; (12)Temperature range: Industrial (I): -40 to +85℃.

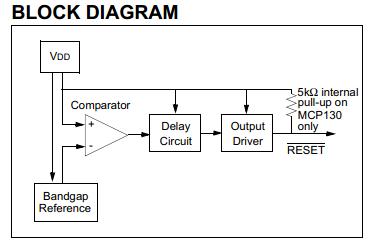

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCP130T-315I/TT |
Microchip Technology |
Supervisory Circuits w/5K Pull-Up Low |
Data Sheet |
|
|
||||||||||||
