Product Summary

The MC9S08QG4CFKE is a low-cost, high-performance HCS08 Family of 8-bit microcontroller unit (MCU). All MCUs in the family use the enhanced HCS08 core and are available with a variety of modules, memory sizes, memory types, and package types.

Parametrics

MC9S08QG4CFKE absolute maximum ratings: (1)Supply voltage VDD: -0.3 to +3.8 V; (2)Maximum current into VDD IDD: 120 mA; (3)Digital input voltage VIn: -0.3 to VDD + 0.3 V; (4)Instantaneous maximum current Single pin limit (applies to all port pins)ID: ± 25 mA; (5)Storage temperature range Tstg: -55 to 150 ℃.


Features

MC9S08QG4CFKE features: (1)20-MHz HCS08 CPU (central processor unit); (2)HC08 instruction set with added BGND instruction; (3)Background debugging system; (4)Breakpoint capability to allow single breakpoint setting during in-circuit debugging (plus two more breakpoints in on-chip debug module); (5)Debug module containing two comparators and nine trigger modes. Eight deep FIFO for storing change-of-flow addresses and event-only data Debug module supports both tag and force breakpoints; (6)Support for up to 32 interrupt/reset sources.

Diagrams

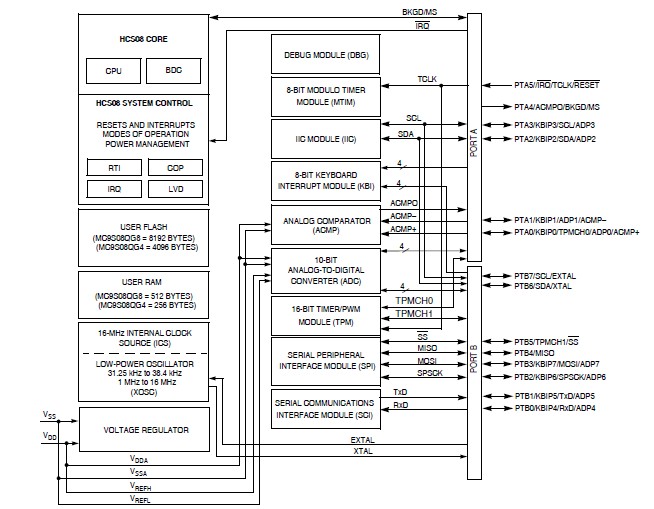

MC9S08QG4CFKE pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9S08QG4CFKE
MC9S08QG4CFKE
Freescale Semiconductor
8-bit Microcontrollers (MCU) 8 BIT 16K FLASH 4K RAM
Data Sheet
0-1: $0.92
1-10: $0.87
10-25: $0.82
25-100: $0.52
